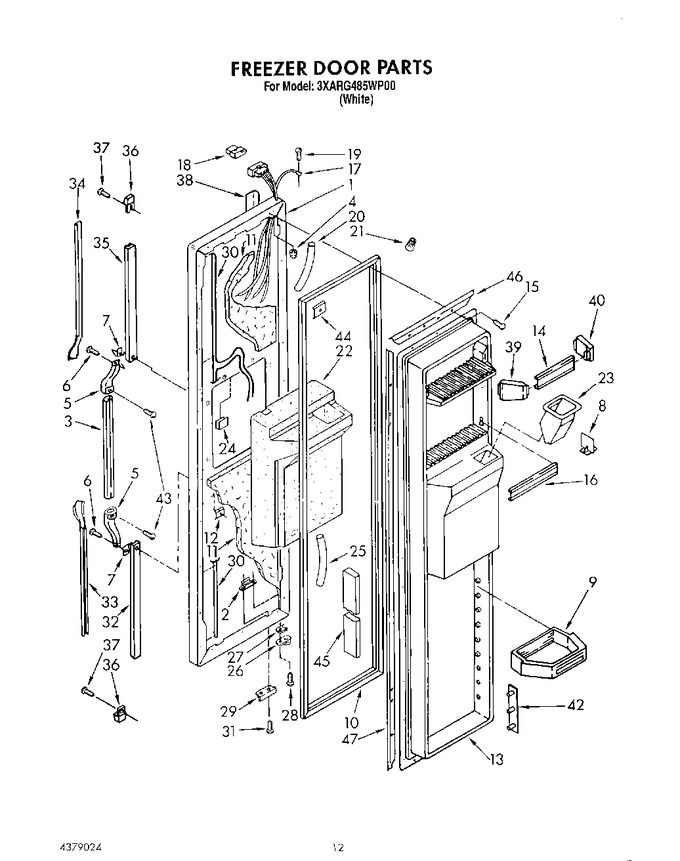

1	1110652		Freezer, Door Panel (also Order Item 11)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	1124713		Handle, Center		Appelez-nous	-
4	939886		Seal, Hinge Pin		Appelez-nous	-
5	1119359		End Cap (2)		Appelez-nous	-
6	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
7	935075		Shim, End Cap (2)		Appelez-nous	-
8	1123293		Divider, Shelf		Appelez-nous	-
9	1124854		Shelf Bin (3)		Appelez-nous	-
10	1125928		Door Gasket, Magnetic		Appelez-nous	-
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	2150326		Panel, Interior Door		Appelez-nous	-
14	1124851		Trim, Door Shelf		Appelez-nous	-
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
16	1124852		Trim, Door Shelf		Appelez-nous	-
17	2167055		Harness, Door (includes Item 18)		Appelez-nous	-
18	936183		Connector, Plug		Appelez-nous	-
19	WP488234		Screw   (Replaces: 488889)				$ 6.74
20	1119060		Tube, Door Wiring		Appelez-nous	-
21	850145		Wire Connector		Appelez-nous	-
22	1119038		Insulation, Dispenser		Appelez-nous	-
23	1119036		Chute, Ice		Appelez-nous	-
24	939143		Wiring Protector		Appelez-nous	-
25	2147080		Tube, Door Wiring		Appelez-nous	-
26	4318165		Door Closer, Upper Cam   (Replaces: 986758)			Immediately	$ 27.36
27	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
28	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
29	988420		Bracket, Door Stop		Appelez-nous	-
30	2165376		Heater, Door		Appelez-nous	-
31	WP489069		Screw   (Replaces: 488938)			Immediately	$ 7.86
32	1119360		Retainer, Insert		Appelez-nous	-
33	1119361		Insert, Handle		Appelez-nous	-
34	1119373		Insert, Handle		Appelez-nous	-
35	1119372		Retainer, Insert		Appelez-nous	-
36	2156220		End Cap (2)		Appelez-nous	-
37	489075		Screw		Appelez-nous	-
38	1119062		Trim, Door		Appelez-nous	-
39	1115333		End Cap, Trim		Appelez-nous	-
40	1115364		End Cap, Trim		Appelez-nous	-
42	1116986		Pin Plate (6)				$ 12.10
43	489022		Screw		Appelez-nous	-
44	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
45	1115378		Door Dike (2)		Appelez-nous	-
46	1118306		Gasket Retainer, Top & Bottom		Appelez-nous	-
47	1118302		Gasket Retainer, Side (2)		Appelez-nous	-
