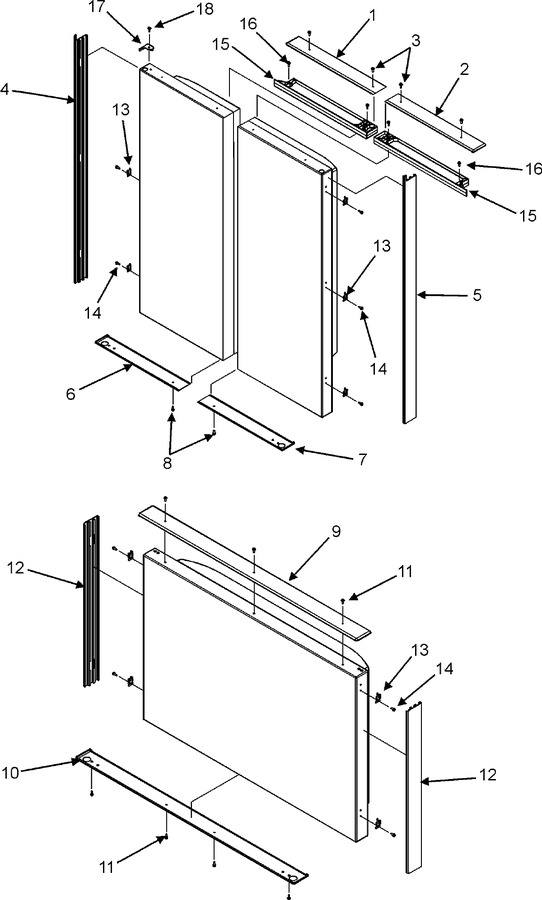

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006279		Trim, Left Door (top-stnls)	10	Appelez-nous	-
2	67006629		Trim, Right Door (top-stnls)	10	Appelez-nous	-
3	WP3400805		Screw   (Replaces: 67006769)	10			$ 7.19
4	67006228		Trim, Door (lt-stnls)	10			$ 147.89
5	67006513		Trim, Door (rt-stnls)	10			$ 134.98
6	67006782		Trim, Left Door (btm-stnls)	10	Appelez-nous	-
7	67006783		Trim, Right Door (btm-stnls)	10	Appelez-nous	-
8	WP98165		Screw   (Replaces: 67006287)	10			$ 8.00
9	67006124		Trim, Door (top-stnls)	10	Appelez-nous	-
10	67006122		Trim, Door (btm-stnls)	10	Appelez-nous	-
11	WP3400805		Screw   (Replaces: 67006769)	10			$ 7.19
12	67006784		Trim, Door (side-stnls)	10	Appelez-nous	-
13	67002451		Clip	10			$ 8.44
14	WP489128		Screw   (Replaces: 67006767)	10			$ 10.88
15	67005698		Extension, Door (blk)	10	Appelez-nous	-
16	WP67006415		Screw   (Replaces: 67006415)	10			$ 7.80
17	67005699		Clip, Vert Trim	10	Appelez-nous	-
18	WP489128		Screw   (Replaces: 67006767)	10			$ 10.88

    View Diagram in Separate Window       Print Part List
