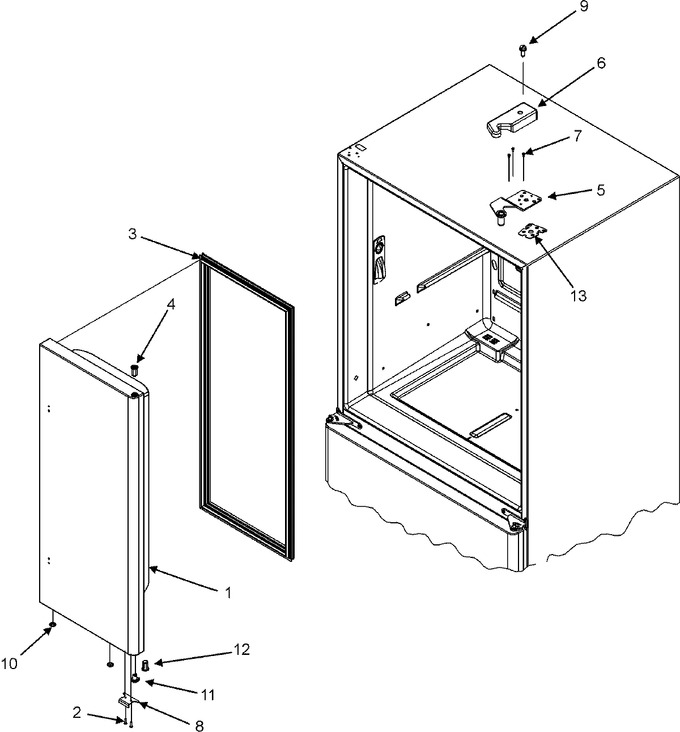

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006787		Door Assy., Rt Ref. Foam (blk)	10	Appelez-nous	-
2	WP98165		Screw   (Replaces: 67006287)	10			$ 8.57
3	W11368721		Gasket, French Door (blk)   (Replaces: 67003547)	10		Immediately	$ 169.21
4	67004978		Bushing, Door (blk)	10			$ 22.10
5	12626910ED		Hinge, Top (rt-blk)   (Replaces: 67005824)	10			$ 124.87
6	12629801B		Cover, Top Hinge (rt-blk)	10			$ 25.13
7	WP489349		Screw   (Replaces: 67006303)	10		Immediately	$ 8.43
8	W11708403		Stop, Door (blk)   (Replaces: 67003780)	10		Immediately	$ 14.75
9	WP8281196		Screw   (Replaces: 67006521)	10		Immediately	$ 7.55
10	67004838		Plug, Vent (blk)	10			$ 11.21
11	WP67003639		Closure, Door (blk)   (Replaces: 67003639)	10			$ 90.32
12	WP67002731		Bushing, Door (blk)   (Replaces: 67002731)	10		Immediately	$ 8.24
13	12579702		Shim, Top Hinge	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
