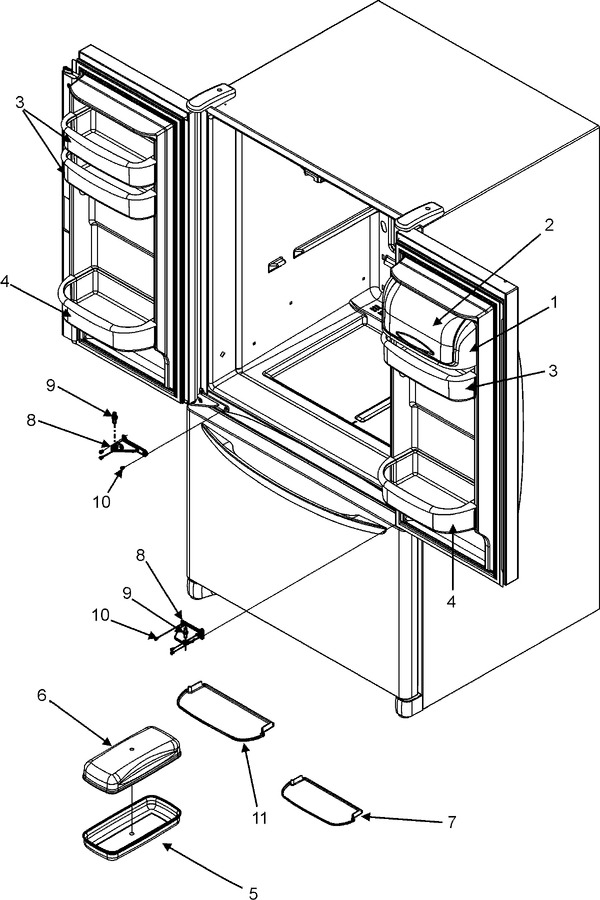

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67001279		Tray, Dairy   (Replaces: 67001279)	10		Immediately	$ 88.01
2	WP67003637		Door, Dairy   (Replaces: 67003637)	10		Immediately	$ 82.67
3	WPW10371193		Bucket, Ref Dr (med)   (Replaces: 67003775)	10		Immediately	$ 74.80
4	WPW10289497		Bucket, Ref Door (gal)   (Replaces: 67005258)	10		Immediately	$ 81.09
5	67004404		Tray, Butter	10	Appelez-nous	-
6	67004405		Lid, Butter Tray	10	Appelez-nous	-
7	67006906		Gripper (med)	10	Appelez-nous	-
8	67002960		Hinge, Center (blk)	10	Appelez-nous	-
9	WP67006642		Pin, Center Hinge   (Replaces: 67006642)	10			$ 8.78
10	W11573362		Screw   (Replaces: 67006380)	10			$ 14.72
11	67006907		Gripper (gal)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
