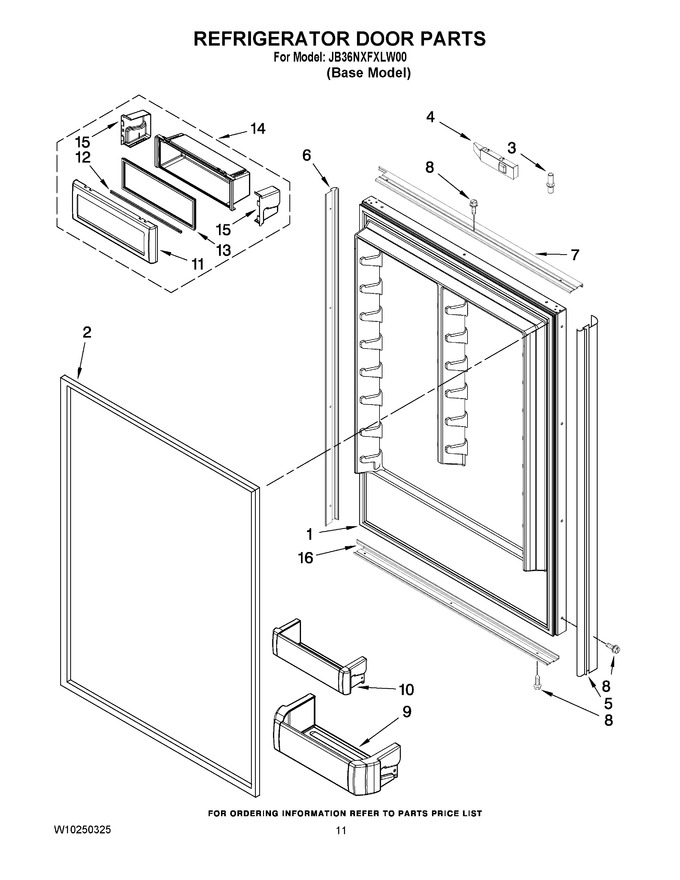

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10202908 | Door, Refrigerator (includes Item 2) |
|
- | |||||
| 2 | 2302709 | Gasket, Door (Replaces: 2300184) |
|
$ 312.67 | |||||
| 3 | W10234194 | Pin-door |
|
$ 16.55 | |||||
| 4 | W10197766 | Insert, Door (bottom) |
|
$ 16.44 | |||||
| 4 | W10197748 | Insert, Door (top) |
|
$ 17.93 | |||||
| 5 | W10188556 | Trim Door |
|
- | |||||
| 6 | W10202602 | Trim-door, Side (hinge Side) |
|
$ 239.33 | |||||
| 7 | W10217464 | Trim-door, Top |
|
- | |||||
| 8 | WPW10142233 | Screw, 8-15 X 1/2 (Replaces: W10142233) |
|
$ 8.39 | |||||
| 9 | W10323749 | Shelf, Door (gallon) (Replaces: 2307975) |
|
$ 130.32 | |||||
| 10 | W11590561 | Shelf, Door (4) (Replaces: 2222777) |
|
$ 89.74 | |||||
| 11 | 2309255 | Door, Utility Bin |
|
$ 43.26 | |||||
| 12 | 2309256 | Rail, Lid |
|
- | |||||
| 13 | 2309257 | Gasket, Utility Bin |
|
- | |||||
| 14 | W10323044 | Bin, Utility (Replaces: 2309252) |
|
$ 126.27 | |||||
| 15 | WPW10323173 | End Cap, Utility Bin (left Side) (Replaces: 2222920) |
|
$ 8.19 | |||||
| 15 | WPW10323172 | End Cap, Utility Bin (right Side) (Replaces: 2222919) |
|
$ 8.19 | |||||
| 16 | W10202901 | Trim-door, Bottom |
|
- |
