SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts

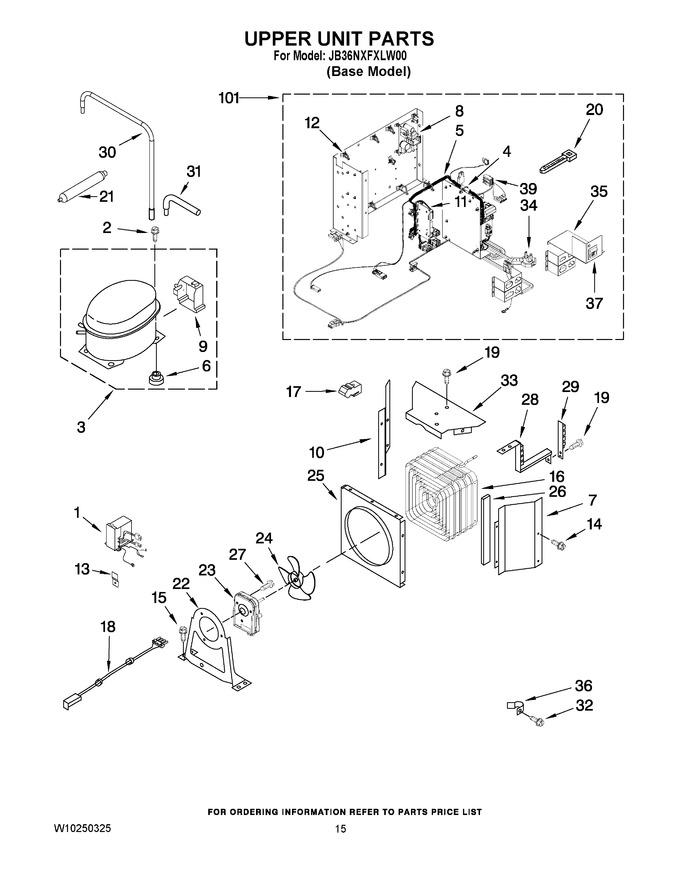

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10629033		Inverter Box   (Replaces: W10133449)			Immediately	$ 422.33
2	876811		Screw, Compressor Mounting (4)   (Replaces: 489373)				$ 7.42
3	8201675		Compressor (includes Items 6, 9 & 21) (also Order 876765 Tube Kit)   (Replaces: 2223801)			Immediately	$ 538.32
4	WPW10200659		Ctrl-elek, I/o   (Replaces: W10200659)			Immediately	$ 355.73
5	W10209460		Wire Assy, Dc		Appelez-nous	-
6	876811		Grommet, Mounting   (Replaces: 1100826)				$ 7.42
7	2309002		Support, Condenser (right)		Appelez-nous	-
8	WPW10184634		Ctrl-elek, Controls   (Replaces: W10184634)				$ 413.61
9	2215676		Terminal Cover				$ 89.87
10	2309001		Support, Condenser (left)		Appelez-nous	-
11	WPW10356040		Ctrl-elek, Flash   (Replaces: W10120824)			Immediately	$ 307.45
12	WP2203075		Spacer (9)   (Replaces: 2203075)			Immediately	$ 17.91
13	2256328		Bracket, Inverter Box		Appelez-nous	-
14	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.72
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.86
16	2307998		Condenser				$ 485.76
17	2309431		Grommet (2)				$ 13.55
18	2310207		Wire Assembly (condenser Fan)		Appelez-nous	-
19	WP489399		Screw   (Replaces: 489399)				$ 6.95
20	WPW10339879		Wire Tie   (Replaces: 2155774)				$ 7.90
21	WPW10143759		Drier   (Replaces: W10175593)			Immediately	$ 30.78
22	WPW10136614		Bracket, Fan Motor   (Replaces: W10136614)				$ 79.11
23	W11578915		Motor, Fan   (Replaces: 2188875)			Immediately	$ 71.42
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 95.07
25	2003169		Orifice, Fan		Appelez-nous	-
26	2309432		Gasket, Condenser		Appelez-nous	-
27	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
28	2317031		Bracket, Vibration Condenser		Appelez-nous	-
29	2317030		Arm, Vibration Condenser		Appelez-nous	-
30	2307566		Tube, Transition (condenser/drier)				$ 16.99
31	W10528578		Tube, Process   (Replaces: 2194319)				$ 37.92
32	W11624204		Screw   (Replaces: 486194)				$ 14.02
33	2309000		Cover, Condenser		Appelez-nous	-
34	2310196		Service Cord			Immediately	$ 84.30
35	W10209446		Bracket, Mounting (power Switch)		Appelez-nous	-
36	549193		Clamp,cord				$ 13.39
37	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 103.89
39	W10209462		Wire Assy, Ac		Appelez-nous	-
101	W10193384		Unit Assy, Controls				$ 575.34
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	SF5516		Valve, Access (5/16``)   (Replaces: 978026)			Immediately	$ 18.94
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.50 Oz. (r-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
