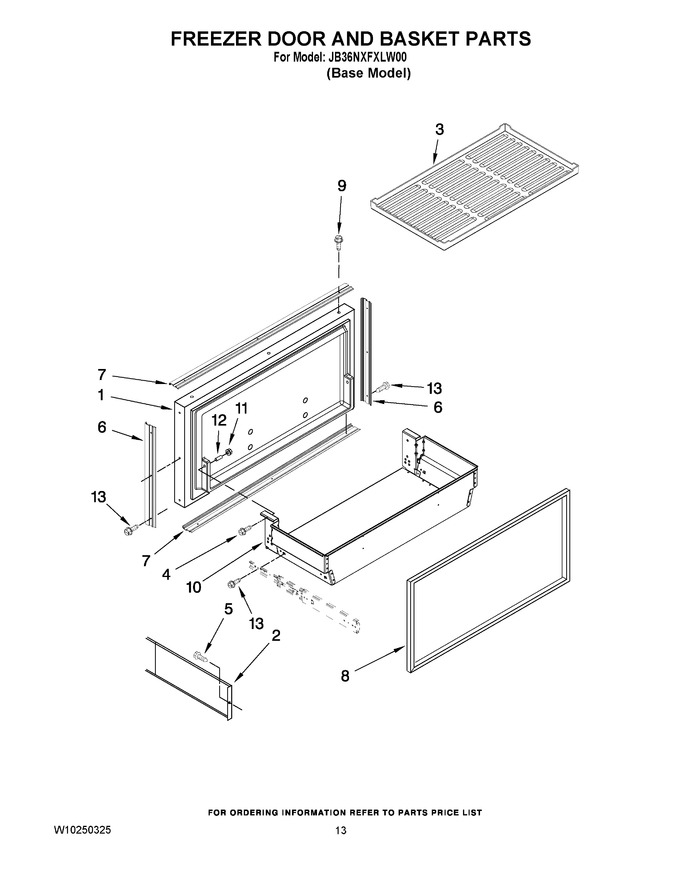

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10138398 | Freezer Door Panel (includes Item 9) |
|
- | |||||
| 2 | 2317101 | Divider, Basket (2) |
|
- | |||||
| 3 | W10168937 | Mat, Basket |
|
- | |||||
| 4 | W10135775 | Screw, 5/16 X 1 |
|
$ 14.22 | |||||
| 5 | WP488234 | Screw (Replaces: W10135792) |
|
$ 6.74 | |||||
| 6 | W10203452 | Trim-door, Side |
|
$ 102.63 | |||||
| 7 | W10203448 | Trim-door, |
|
$ 91.50 | |||||
| 8 | W11624996 | Door Gasket, Magnetic (Replaces: W10144009) |
|
Immediately | $ 232.11 | ||||
| 9 | WP8281250 | Screw, 8-15 X 1/2 (Replaces: 8281250) |
|
$ 10.88 | |||||
| 10 | W10258182 | Basket Assembly, Freezer (Replaces: 2327533) |
|
$ 242.29 | |||||
| 11 | WP2207454 | Nut, Hex (Replaces: 2207454) |
|
$ 10.64 | |||||
| 12 | W10001190 | Washer |
|
$ 8.38 | |||||
| 13 | W10109030 | Screw, 10-24 X 1/4 (basket To Slide) |
|
$ 14.62 |
