Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10183768 Top Grille Assembly Appelez-nous -
2 W10161693 Cover, Unit Appelez-nous -
4 2256466 Back Panel Special Order $ 311.64

5 2307682 Front, Unit Cover Appelez-nous -
6 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 10.72

7 2187894 Wire Assembly, Light Switch Appelez-nous -
8 WPW10159578 Nameplate   (Replaces: W10159578) In-Stock Immediately $ 84.32

9 489348 Clamp Appelez-nous -
10 WP489399 Screw (5)   (Replaces: 489399) Special Order $ 6.95

11 2215910 Grommet Special Order $ 89.83


    View Diagram in Separate Window     Print Icon   Print Part List

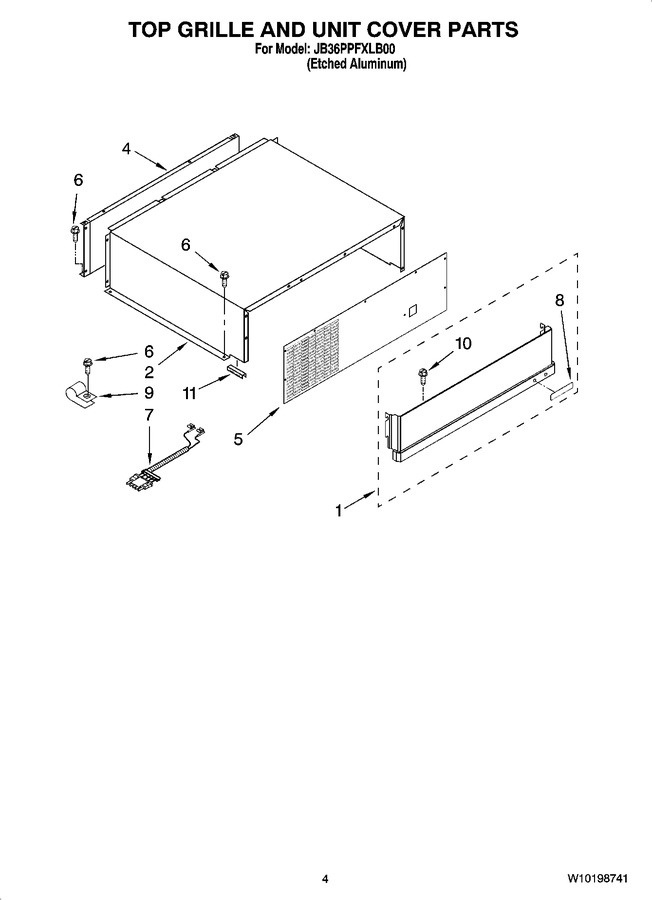

Diagram for JB36PPFXLB00
