SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet And Breaker Trim Parts


03 - Top Grille And Unit Cover Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Upper Unit Parts


10 - Lower Unit And Tube Parts


11 - Icemaker Parts

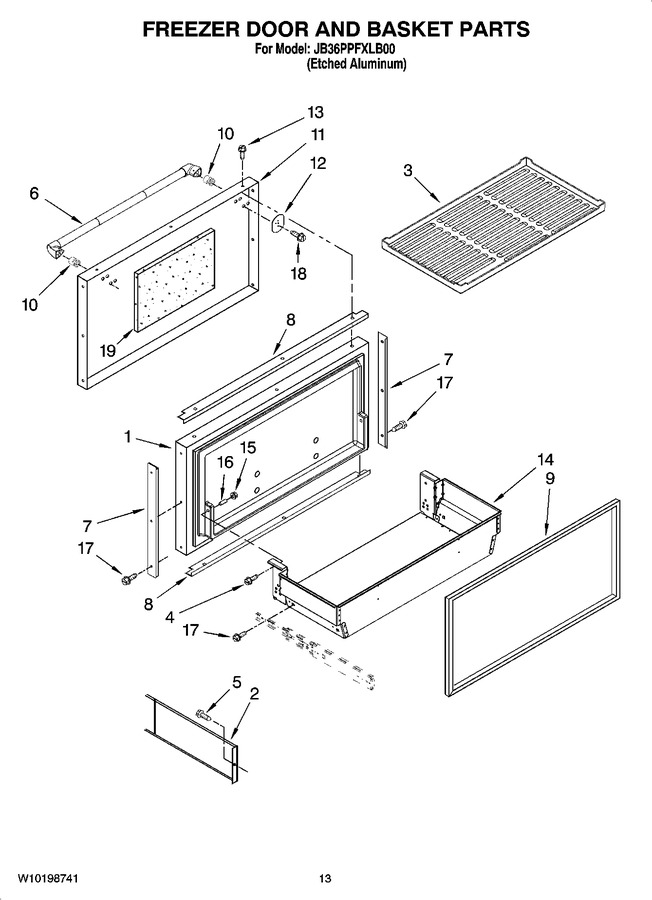

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327401		Freezer Door Panel (includes Item 9)		Appelez-nous	-
2	2317101		Divider, Basket (2)		Appelez-nous	-
3	W10168937		Mat, Basket		Appelez-nous	-
4	W10135775		Screw, 5/16 X 1				$ 14.22
5	WP488234		Screw   (Replaces: W10135792)				$ 6.74
6	WP12859110		Handle   (Replaces: 12859110)				$ 311.98
7	2300025		Spacer, Door Edge (side)		Appelez-nous	-
8	2300027		Spacer, Door Edge (top & Bottom)		Appelez-nous	-
9	2302710		Door Gasket, Magnetic   (Replaces: 2300185)				$ 293.23
10	WPW10153450		Stud, Mounting   (Replaces: W10153450)				$ 83.10
11	W10168923		Skin, Door		Appelez-nous	-
12	W10127710		Plate, Door			Immediately	$ 24.70
13	WP8281250		Screw, 8-15 X 1/2   (Replaces: 8281250)				$ 10.88
14	W10258182		Basket Assembly, Freezer   (Replaces: 2327533)				$ 242.29
15	WP2207454		Nut, Hex   (Replaces: 2207454)				$ 10.64
16	W10001190		Washer				$ 8.38
17	W10109030		Screw, 10-24 X 1/4 (basket To Slide)				$ 14.62
18	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.76
19	2327468		Filler, Foam		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
