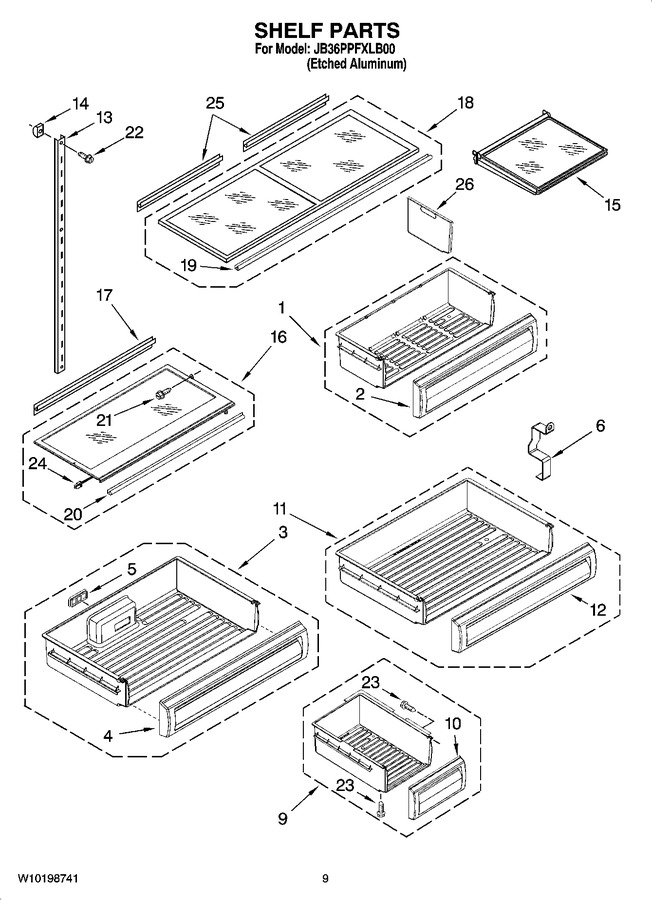

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2256375		Crisper Pan Assembly (includes 2)   (Replaces: 2256375)				$ 378.33
2	2256374		Front, Crisper Pan		Appelez-nous	-
3	2268397		Deli Pan Assembly (incl. 4 & 5)		Appelez-nous	-
4	2257548		Front, Deli Pan				$ 157.61
5	2307810		Duct, Deli Pan		Appelez-nous	-
6	2327394		Clip, Bin (left)		Appelez-nous	-
6	2327393		Clip, Bin (right)				$ 61.29
9	2306174		Ice Pan Assembly (includes 10)				$ 147.41
10	2306175		Front, Ice Pan				$ 91.39
11	2327512		Freezer Pan Assembly (includes 12)		Appelez-nous	-
12	2268383		Front, Freezer Pan		Appelez-nous	-
13	2327314		Ladder, Shelf (4)		Appelez-nous	-
14	520965		Support, Ladder				$ 29.86
15	W10183757		Shelf (4)		Appelez-nous	-
16	W10183750		Cover, Deli Bin		Appelez-nous	-
16	2327413		Insulation, Deli		Appelez-nous	-
17	2309399		Gasket, Rear		Appelez-nous	-
18	W10183749		Cover, Crisper		Appelez-nous	-
19	2309397		Gasket, Front (crisper Cover)		Appelez-nous	-
20	2309397		Gasket, Front (deli Cover)		Appelez-nous	-
21	W10825422		Screw   (Replaces: 8281251)				$ 10.82
22	2006475		Screw		Appelez-nous	-
23	WP488787		Screw, 8-18 X 1/2   (Replaces: 488886)				$ 10.58
24	2309393		Light Assy, (deli)		Appelez-nous	-
25	2309398		Gasket, Rear		Appelez-nous	-
26	2256474		Divider, (crisper Pan)				$ 87.99
