SELECT A DIAGRAM

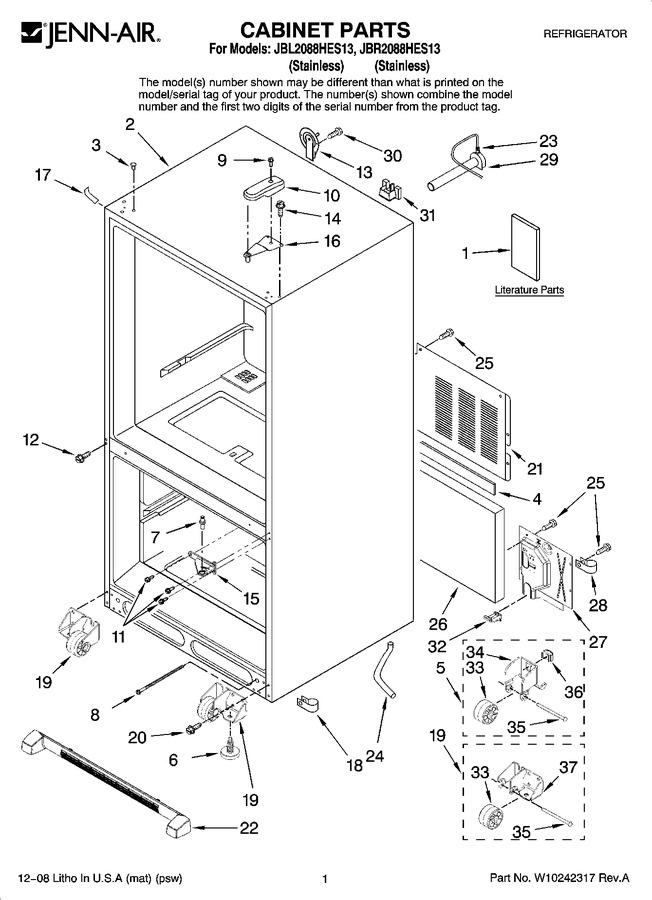

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006616		Tech Sheet		Appelez-nous	-
1	W10137647		Use & Care Guide		Appelez-nous	-
1	67005645		Energy Guide		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: M0310731)			Immediately	$ 7.76
4	B5759649		Gasket		Appelez-nous	-
5	67006118		Roller Assy. (2)		Appelez-nous	-
6	WPW10141622		Foot Brake   (Replaces: W10141622)			Immediately	$ 7.85
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 7.93
8	67006697		Bolt, Adjusting (rear)				$ 12.88
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	67001012		Cover Hinge (black)				$ 47.34
11	W11573362		Screw   (Replaces: 67006380)				$ 14.02
12	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
13	12726003		Cover, Water Line   (Replaces: 67003331)				$ 18.28
14	WP489349		Screw (3)   (Replaces: 67006303)			Immediately	$ 7.88
15	WP12607104ED		Hinge, Center (black)   (Replaces: 67007043)				$ 152.73
16	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 44.89
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
18	67001067		Clip, Drain				$ 9.20
19	W11820445		Roller Assembly (front) (right)   (Replaces: W10130459)			Immediately	$ 35.57
19	W11820444		Roller Assembly (front) (left)   (Replaces: W10130460)			Immediately	$ 35.57
20	67006564		Screw (8)			Immediately	$ 7.69
21	67006101		Cover, Unit				$ 76.68
22	W10131134		Grille, Toe (black)				$ 53.25
23	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
24	67001066		Tube, Drain				$ 55.82
25	67006425		Screw			Immediately	$ 6.95
26	67003796		Fiber, Acoustic				$ 19.27
27	12751506ED		Cover, Water Valve		Appelez-nous	-
28	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
29	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 114.15
30	WP98165		Screw   (Replaces: 67006287)				$ 8.00
31	67004092		Block, Filter (2)		Appelez-nous	-
32	12831101		Sweep, Dual Tube   (Replaces: 67004101)				$ 12.41
33	WP10450603		Roller   (Replaces: 67005127)				$ 7.88
34	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
35	M1205302		Rivet				$ 5.85
36	M0286708		Nut, Speed				$ 45.57
37	W10137533		Bracket, Roller (front) (right)		Appelez-nous	-
37	W10137532		Bracket, Roller (front) (left)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
