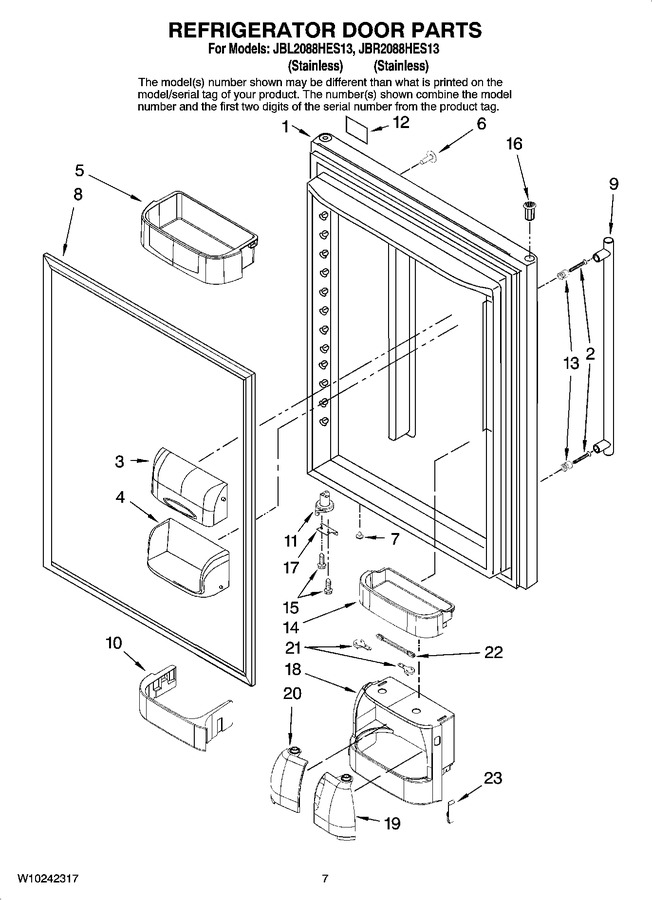

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13023845SQ		Door, Refrigerator (stainless (for Jbr2088hes13))		Appelez-nous	-
1	13023844SQ		Door, Refrigerator (stainless (for Jbl2088hes13))		Appelez-nous	-
2	WPW10133608		Screw   (Replaces: W10133608)				$ 8.30
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
5	67004718		Bucket, Large (2)		Appelez-nous	-
6	WP12246608		Plug, Handle Hole (black)   (Replaces: 67001131)			Immediately	$ 7.76
7	67004838		Plug, Button (2) (black)				$ 10.68
8	W10849442		Gasket, Door (black)   (Replaces: W10133881)				$ 344.33
9	WP12850910		Handle, Door (stainless)   (Replaces: 12850910)				$ 275.89
10	67004717		Retainer, Chiller				$ 26.59
11	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 86.02
12	12848704		Nameplate				$ 60.12
13	67006109		Mount, Handle		Appelez-nous	-
14	67004721		Bucket, Chiller		Appelez-nous	-
15	WP98165		Screw   (Replaces: 67006287)				$ 8.00
16	67004978		Bushing (4) (black)				$ 21.05
17	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.05
18	67004720		Frame, Chiller		Appelez-nous	-
19	67004598		Door, Rh Chiller				$ 36.77
20	67004599		Door, Lh Chiller		Appelez-nous	-
21	67002293		Linkage, Chiller				$ 11.76
22	67004601		Linkage, Chiller Center		Appelez-nous	-
23	67004602		Hook, Chiller Frame		Appelez-nous	-
