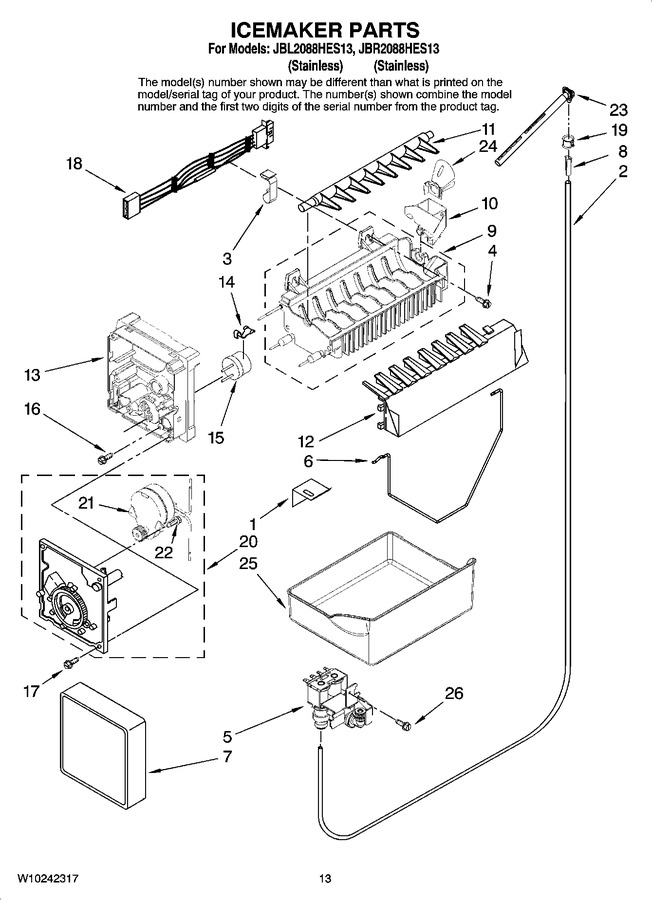

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2256087 | Bracket, Ice Maker (Replaces: 2256086) |
|
$ 93.00 | |||||
| 2 | WPB5705307 | Tube, Plastic (Replaces: 67003729) |
|
$ 12.43 | |||||
| 3 | 67003932 | Clamp |
|
- | |||||
| 4 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 5 | WP67006531 | Valve-inlet (Replaces: 67006531) |
|
Immediately | $ 167.68 | ||||
| 6 | WP67004028 | Arm, Shutoff (Replaces: 67004028) |
|
Immediately | $ 91.35 | ||||
| 7 | WPW10289690 | Cover, Front (Replaces: 67004710) |
|
Immediately | $ 8.40 | ||||
| 8 | WPA3223101 | Inert, Tube (Replaces: A3223101) |
|
Immediately | $ 7.82 | ||||
| 9 | WPW10190929 | Mold & Heater Assembly (also Order 542638) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 10 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 27.77 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 12 | WP2182124 | Ice Stripper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 13 | WP2195914 | Housing, Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer (Replaces: 2315522) |
|
$ 11.05 | |||||
| 15 | WP627985 | Thermostat (order 542369 Cement Alumilastic) (Replaces: 627985) |
|
$ 109.18 | |||||
| 16 | 8533917 | Screw |
|
$ 13.37 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 18 | WPD7813010 | Harness, Ice Maker (Replaces: W10153408) |
|
Immediately | $ 73.97 | ||||
| 19 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.05 | |||||
| 20 | 8201515 | Module Assembly (includes Items 21& 22) (Replaces: 626678) |
|
Immediately | $ 141.64 | ||||
| 21 | W10190935 | Motor (Replaces: 626684) |
|
Immediately | $ 110.07 | ||||
| 22 | 489136 | Screw |
|
$ 10.29 | |||||
| 23 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 114.15 | ||||
| 24 | 12918001 | Funnel, Fill Tube (Replaces: 67005603) |
|
Immediately | $ 12.41 | ||||
| 25 | WP67001255 | Pan, Ice (Replaces: 67001255) |
|
$ 203.08 | |||||
| 26 | WP489128 | Screw (Replaces: 67006662) |
|
$ 10.88 | |||||
| 100 | D7824706Q | Complete Icemaker |
|
Immediately | $ 167.35 |
