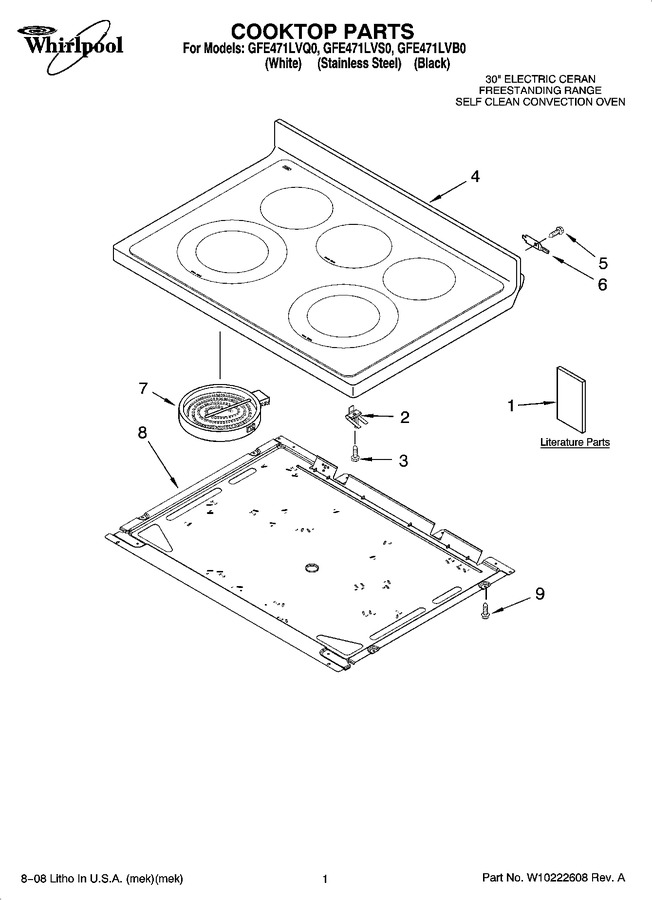

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10198586 | Tech Sheet |
|
- | |||||
| 1 | W10200354 | Owners Manual |
|
- | |||||
| 1 | W10196158 | Installation Instructions |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | 9757142 | Template,anti-tip (english/spanish) |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safe Cooking |
|
- | |||||
| 2 | WPW10225448 | Spring, Locator (Replaces: W10162042) |
|
Immediately | $ 10.40 | ||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 7.55 | |||||
| 4 | W10651915 | Cooktop (black) (Replaces: W10162035) |
|
$ 684.99 | |||||
| 4 | W10651914 | Cooktop (white) (Replaces: W10162034) |
|
$ 702.42 | |||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 7 | W11517959 | Element, Surface (3000/1400 W - Rf) (Replaces: W10169799) |
|
Immediately | $ 134.44 | ||||
| 7 | WP9762851 | Element, Surface (warm Zone (120v)) (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 7 | W10823711 | Element, Surface (1200 W -right Rear) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 7 | WPW10162041 | Element, Surface (3000/2200/1100 W Left Front) (Replaces: W10162041) |
|
$ 385.99 | |||||
| 8 | W10170526 | Pan, Radiant Elmt |
|
$ 270.57 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
