SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts

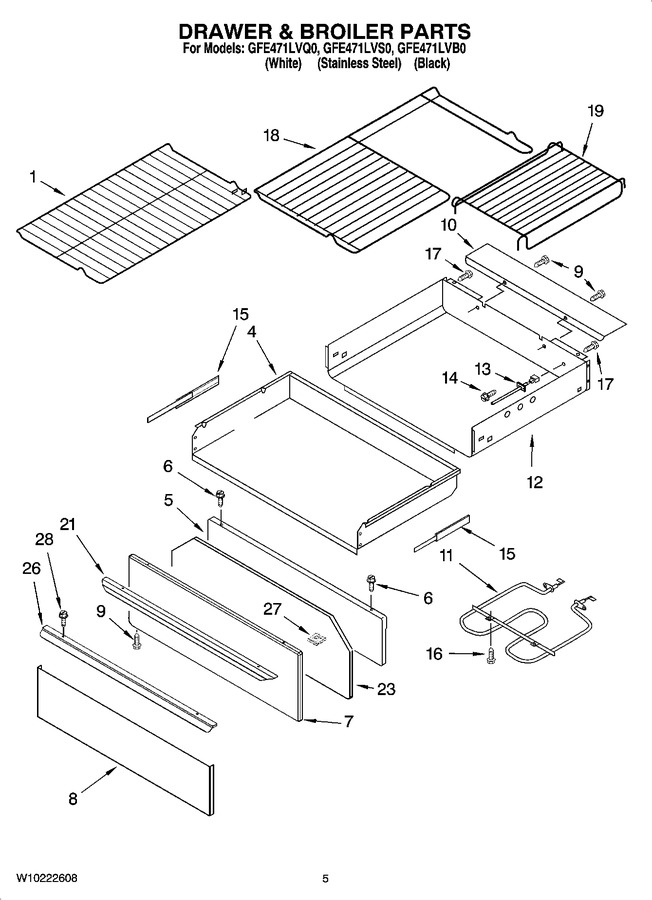

04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: W10179196)			Immediately	$ 46.84
4	8272610		Drawer, Warming				$ 141.41
5	8272609		Panel, Inner				$ 36.52
6	WPW10031790		Screw (black)   (Replaces: W10031790)			Immediately	$ 8.74
6	WP3196567		Screw (stainless Steel)   (Replaces: 3196567)				$ 8.06
6	8533819		Screw (white)		Appelez-nous	-
7	W10181664		Panel, Drawer Frnt (black)				$ 54.57
7	8272943		Panel, Drawer Frnt (white)				$ 68.67
8	W10217860		Wrap- Stainless Steel Model		Appelez-nous	-
9	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
10	W10214316		Heat Shield, Element		Appelez-nous	-
11	9758520		Element, Warming		Appelez-nous	-
12	W10145342		Enclosure, Drawer				$ 22.50
13	WPW10131827		Sensor   (Replaces: W10131827)				$ 275.58
14	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.55
15	9761930		Slide, Drawer (right Hand)				$ 44.45
15	9761929		Slide, Drawer (left Hand)				$ 60.25
16	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 8.44
17	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
18	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 159.11
19	4396927		Rack, Insert   (Replaces: 8274022)				$ 246.10
21	9757219		Handle (black)		Appelez-nous	-
21	W10118398		Handle (white)				$ 115.69
23	W10061390		Insulation		Appelez-nous	-
26	W10197980		Handle, Stainless Steel Model				$ 57.05
27	WP9781235		Speed Clip   (Replaces: 9781235)				$ 12.56
28	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74

    View Diagram in Separate Window       Print Part List
