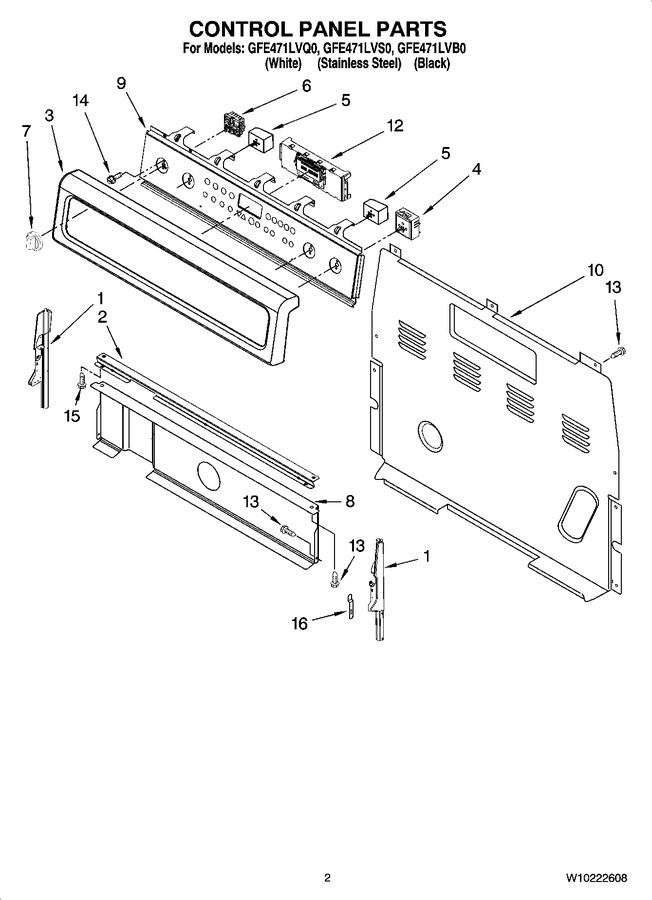

02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black Left Hand)   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black Right Hand)   (Replaces: W10184438)				$ 45.17
2	W10525121		Bracket, Console   (Replaces: W10182322)				$ 98.85
3	W10201507		Console (white)				$ 115.53
3	W10201510		Console (stainless Steel)				$ 116.83
3	W10201509		Console (black)				$ 114.95
4	WPW10149355		Switch, Infinite Right Front (dual Elmt)   (Replaces: W10149355)			Immediately	$ 204.91
5	5500-287		Switch, Infinite Left & Right Rear (single Elmt)   (Replaces: 3148951)			Immediately	$ 52.39
6	WPW10169580		Infinite Switch Left Front (triple Elmt)   (Replaces: W10169580)			Immediately	$ 231.01
7	W10155337		Knob, Infinite (4) (black)				$ 20.15
7	W10154955		Knob, Infinite (4) (white)				$ 21.22
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	W10221471		Active Overlay Assembly (black)		Appelez-nous	-
9	W10221470		Active Overlay Assembly (white)		Appelez-nous	-
10	WP8272473		Cover, Rear   (Replaces: 8272473)				$ 219.04
12	W10157239		Control, Range		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
15	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 8.18
15	3196166		Screw (white)				$ 7.36
16	3196200		Clip, Spring (2)				$ 10.45
