SELECT A DIAGRAM

01 - Cooktop Parts

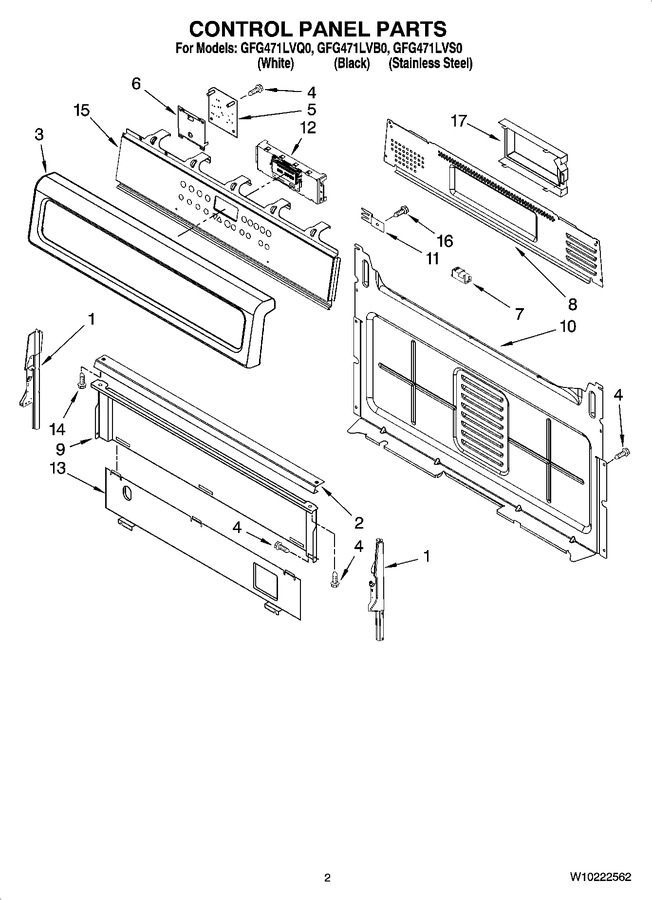

02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 57.93
1	W11219664		Endcap (black Left Hand)   (Replaces: W10184437)				$ 146.50
1	W11219665		Endcap (black Right Hand)   (Replaces: W10184438)				$ 40.44
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 40.43
2	W10211996		Bracket, Console		Appelez-nous	-
3	W10201510		Panel, Control (stainless Model)				$ 116.83
3	W10201507		Panel, Control (white)				$ 115.53
3	W10201509		Panel, Control (black)				$ 114.95
4	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
5	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 393.86
6	W10167573		Brkt-mntg, Dsi		Appelez-nous	-
7	8522425		Spark Module (filtered)				$ 122.75
8	W10198745		Cover, Upper				$ 122.76
9	W10192841		Shield, Heat				$ 101.61
10	W10184251		Cover, Lower		Appelez-nous	-
11	8523412		Bracket, Support				$ 159.90
12	W10157245		Control, Range		Appelez-nous	-
13	8053505		Heat Shield, Lower				$ 157.99
14	3196166		Screw (white)				$ 7.01
14	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 7.75
15	W10224756		Active Overlay Assembly (black)				$ 256.78
15	W10224755		Active Overlay Assembly (white)		Appelez-nous	-
16	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
17	W10148780		Cover		Appelez-nous	-
