SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts

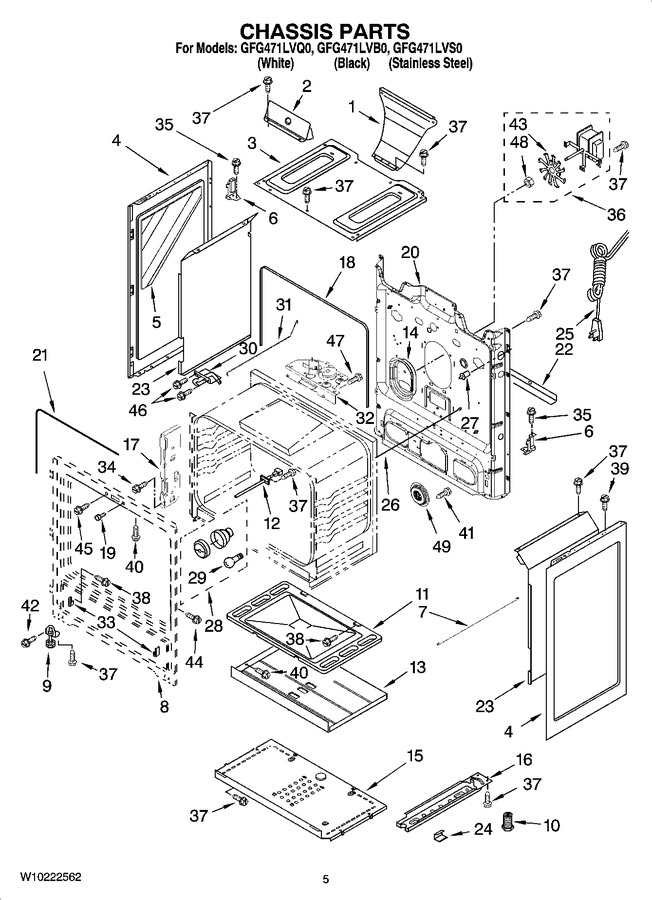

04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Flue Box (Replaces: W10153186) |
|
$ 157.80 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 74.51 | |||||
| 3 | W11379351 | Burner Box (Replaces: 8273036) |
|
$ 64.19 | |||||
| 4 | W11730303 | Panel, Side (2) (black) (Replaces: 8053832) |
|
Immediately | $ 178.50 | ||||
| 4 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 148.71 | |||||
| 5 | W10182346 | Insulation |
|
$ 77.83 | |||||
| 6 | 8523249 | Brkt, Manifold Mtg |
|
- | |||||
| 7 | W10727426 | Rod-insl Retainer (Replaces: W10196451) |
|
Immediately | $ 85.10 | ||||
| 9 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 87.12 | |||||
| 10 | WPW10058460 | Foot, Rear (2) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 11 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 231.05 | |||||
| 12 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 13 | 8053967 | Baffle, Burner |
|
$ 315.96 | |||||
| 14 | W10134126 | Bracket, Fan |
|
$ 23.98 | |||||
| 15 | 8053505 | Shield, Lower |
|
$ 165.89 | |||||
| 16 | W11818353 | Rail, Base (2) (Replaces: 9760314) |
|
$ 62.66 | |||||
| 17 | W10647259 | Brkt - Mounting (Replaces: 9760407) |
|
Immediately | $ 9.32 | ||||
| 18 | W10008830 | Seal, Oven Flange |
|
$ 6.32 | |||||
| 19 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 20 | W10134118 | Back, Main |
|
- | |||||
| 21 | W11542153 | Seal, Oven (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 22 | 8053971 | Brace, Main Back |
|
$ 7.82 | |||||
| 23 | 9761448 | Retainer, Insul. (right Hand) |
|
- | |||||
| 23 | 9761449 | Retainer, Insul. (left Hand) |
|
$ 333.51 | |||||
| 24 | W10137382 | Clip, Panel (4) |
|
Immediately | $ 48.42 | ||||
| 25 | W11582239 | Cord, Power (Replaces: 9757891) |
|
$ 17.59 | |||||
| 26 | 9757239 | Rod - Dr Switch |
|
$ 96.37 | |||||
| 27 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 28 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 29 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 30 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 256.36 | |||||
| 31 | W10078370 | Rod, Latch |
|
$ 95.24 | |||||
| 32 | WPW10107820 | Latch-mtr (Replaces: W10107820) |
|
$ 309.55 | |||||
| 33 | WPW10114344 | Glide, Drawer (Replaces: 9759785) |
|
Immediately | $ 8.57 | ||||
| 34 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 35 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 36 | W10794440 | Fan Motor, Conv (Replaces: W10167915) |
|
Immediately | $ 332.30 | ||||
| 37 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 38 | 3196152 | Screw |
|
$ 8.99 | |||||
| 39 | 3196166 | Screw (white) |
|
$ 7.36 | |||||
| 39 | WP3400832 | Screw (black) (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 40 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 41 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 42 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 18.60 | |||||
| 43 | W10758272 | Fan Blade (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 44 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 8.24 | |||||
| 45 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 8.18 | ||||
| 46 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 47 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 48 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 21.78 | |||||
| 49 | WPW10134124 | Cover, Fan (Replaces: W10134124) |
|
Immediately | $ 102.59 | ||||
| W11684915 | Insulation, Wrap (Replaces: 8524099) |
|
$ 123.64 | ||||||
| W11688737 | Insulation, Back (Replaces: 8272614) |
|
$ 122.73 | ||||||
| 8053915 | Insulation, Vent (Replaces: 8272613) |
|
$ 13.06 |
