SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts

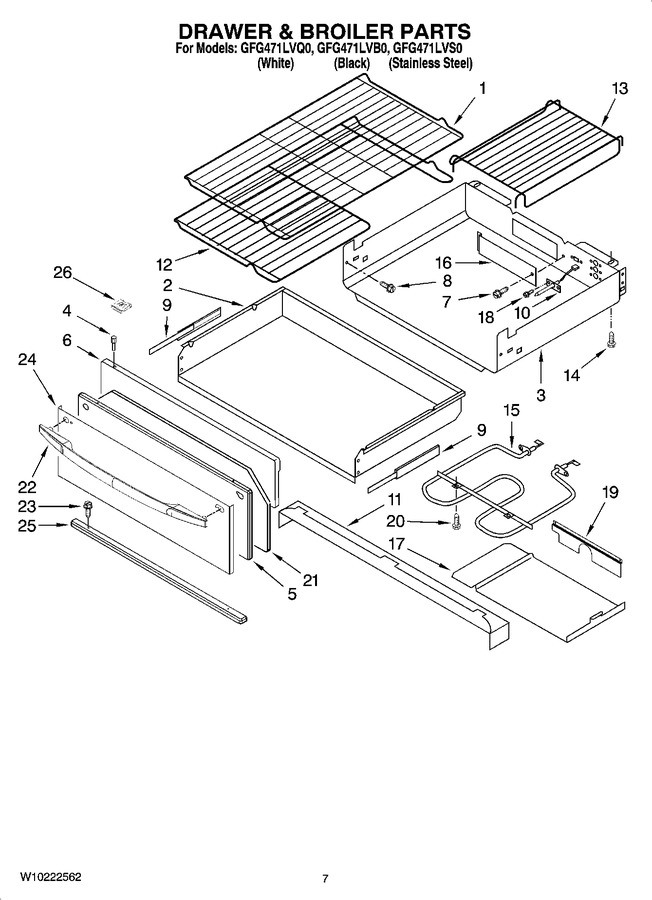

05 - Drawer & Broiler Parts


06 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11520287		Rack, Oven (2)   (Replaces: W10179196)			Immediately	$ 46.84
2	8272610		Drawer, Warming				$ 141.41
3	8274150		Enclosure, Drawer		Appelez-nous	-
4	WP3196814		Rivet, Push (2) (white)   (Replaces: 3196814)			Immediately	$ 11.07
4	WP3196813		Rivet, Push (2) (black)   (Replaces: 3196813)			Immediately	$ 11.20
5	W11230486		Panel, Drawer Frnt (white)   (Replaces: W10022090)				$ 211.49
5	W11230490		Panel, Drawer Frnt (black)   (Replaces: W10022100)				$ 211.59
6	8272608		Panel, Inner		Appelez-nous	-
7	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 7.55
8	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 8.18
9	9761929		Rail Assy, Drawer (left Side)				$ 60.25
9	9761930		Rail Assy, Drawer (right Side)				$ 44.45
10	WPW10131827		Thermistor   (Replaces: W10131827)				$ 275.58
11	8273414		Shield, Warm Dwr		Appelez-nous	-
12	WP8274021		Rack, Partial   (Replaces: 8274021)				$ 159.11
13	4396927		Rack, Insert   (Replaces: 8274022)				$ 246.10
14	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
15	9758520		Element, Warming		Appelez-nous	-
16	8054062		Cover, Access		Appelez-nous	-
17	8274152		Baffle, Radiant		Appelez-nous	-
18	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 8.44
19	9757482		Cover, Element		Appelez-nous	-
20	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 8.44
21	8524233		Insl, Bake Door		Appelez-nous	-
22	9757219		Handle (black)		Appelez-nous	-
22	W10118398		Handle (white)				$ 115.69
23	WPW10031790		Screw (stls. Model)   (Replaces: W10031790)			Immediately	$ 8.74
24	W10217861		Panel(stls. Model)		Appelez-nous	-
25	W10197980		Handle(stls. Mdl)				$ 57.05
26	9781234		Clip(stls. Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
