SELECT A DIAGRAM

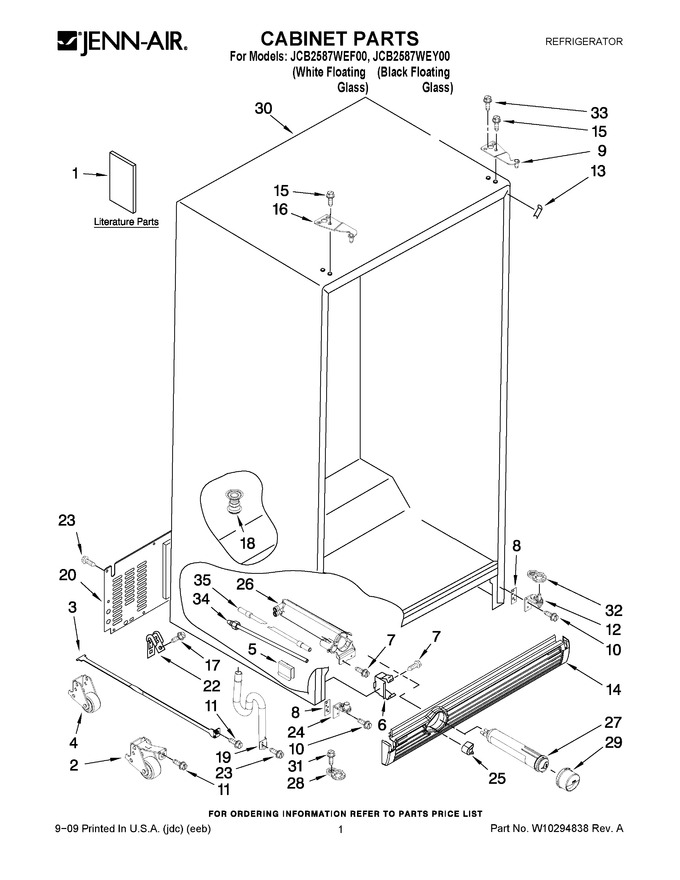

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10272992		Installation Instructions		Appelez-nous	-
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10268712		Energy Guide		Appelez-nous	-
1	W10168308		Use & Care Guide		Appelez-nous	-
1	W10142175		Service & Wiring Sheet		Appelez-nous	-
2	W10199223		Front Roller Asm (right Side)				$ 43.06
2	W10199222		Front Roller Asm (left Side)				$ 36.32
3	W10199260		Strap, Roller		Appelez-nous	-
4	W10173132		Roller, Rear (2)				$ 31.84
5	W11545866		Clip, Retainer (4)   (Replaces: 2223388)				$ 11.31
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	2223545		Shim				$ 84.03
9	2307008AP		Hinge Top, Rc (white)   (Replaces: 2307008W)				$ 159.62
9	2307008B		Hinge Top, Rc (black)				$ 45.29
10	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
11	3400243		Screw				$ 12.03
12	2307179		Hinge Assembly, Bottom-rc (includes No.34)				$ 50.88
13	2223893W		Filler, Wrapper (white)		Appelez-nous	-
13	2223893B		Filler, Wrapper (black)		Appelez-nous	-
14	W10194047		Grille, Filter (white)		Appelez-nous	-
14	W10194057		Grille, Filter (black)		Appelez-nous	-
15	3400108		Screw				$ 12.07
16	2307007B		Hinge, Top Fc (black)				$ 133.41
16	2307007AP		Hinge, Top Fc (white)   (Replaces: 2307007W)				$ 158.03
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
18	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 50.90
19	2254566		Tube, Extension				$ 53.99
20	2223409		Cover, Unit				$ 77.44
22	549193		Clamp, Service Cord				$ 13.39
23	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
24	2307152		Hinge Assembly, Bottom-fc (includes 28 & 31)				$ 36.02
25	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 72.78
25	2260503W		Button, Water Filter (white)			Immediately	$ 34.16
26	BUTTON, WATER		Housing, Water Filter		Appelez-nous	-
27	FILTER		Water Filter		Appelez-nous	-
28	WHITE		Door Closer, Fc		Appelez-nous	-
29	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 28.26
29	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 31.90
30	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
31	WP489483		Screw   (Replaces: 489483)				$ 10.87
32	2307049		Door Closer, Rc				$ 5.84
33	3400858		Screw		Appelez-nous	-
34	WPW10350006		Tube, Filter Outlet   (Replaces: 2224020)				$ 115.54
35	W10212512		Tube, Filter Inlet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
