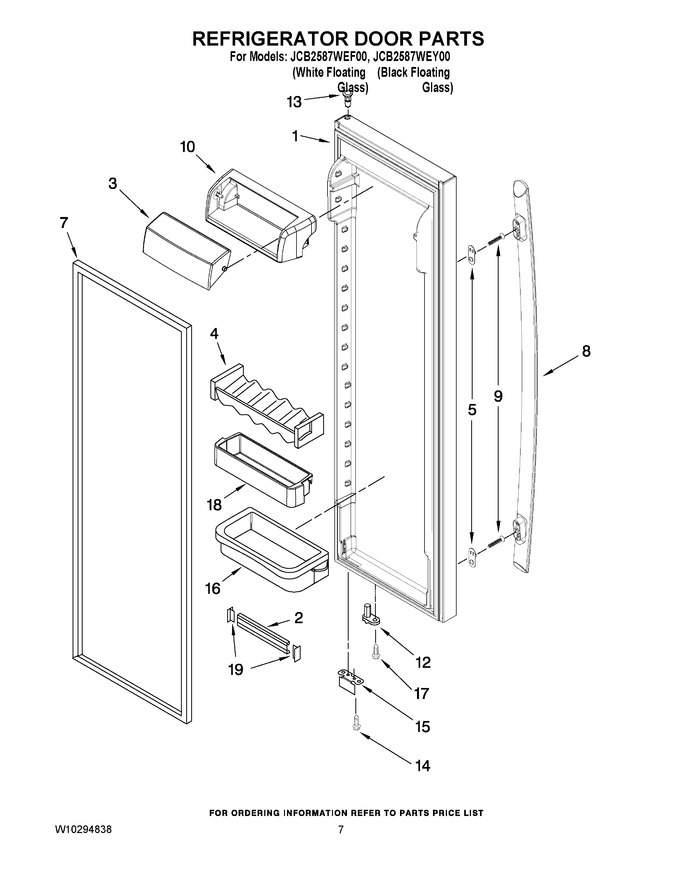

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10202799		Refrigerator Door (includes No.7) (black Glass)		Appelez-nous	-
1	W10202798		Refrigerator Door (includes No.7) (white Glass)		Appelez-nous	-
2	2203087		Trim, Shelf				$ 42.91
3	2255421		Dairy Door				$ 34.76
4	2223883		Caddy, Can				$ 34.98
5	W10214142		Spacer, Hdl (4) (black)		Appelez-nous	-
5	W10190715		Spacer, Hdl (4) (white)		Appelez-nous	-
7	2306996		Door Gasket, Magnetic (black)   (Replaces: 2223909)				$ 335.10
7	2223326		Door Gasket, Magnetic (white)		Appelez-nous	-
8	W10183427		Handle (black)		Appelez-nous	-
8	W10183426		Handle (white)		Appelez-nous	-
9	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
10	2223879		Dairy Compartment				$ 40.49
12	2307048		Thimble Cam, Rc		Appelez-nous	-
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
14	3196180		Screw		Appelez-nous	-
15	2306940		Bracket, Door Stop (white)				$ 101.93
15	2306940B		Bracket, Door Stop (black)				$ 38.97
16	WP2223860		Door Bin (3)   (Replaces: 2223860)			Immediately	$ 84.05
17	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
18	WP2224173		Door Bin, Shallow   (Replaces: 2224173)				$ 91.69
19	WP2156006		Plug, Trim   (Replaces: 2156006)			Immediately	$ 12.79
