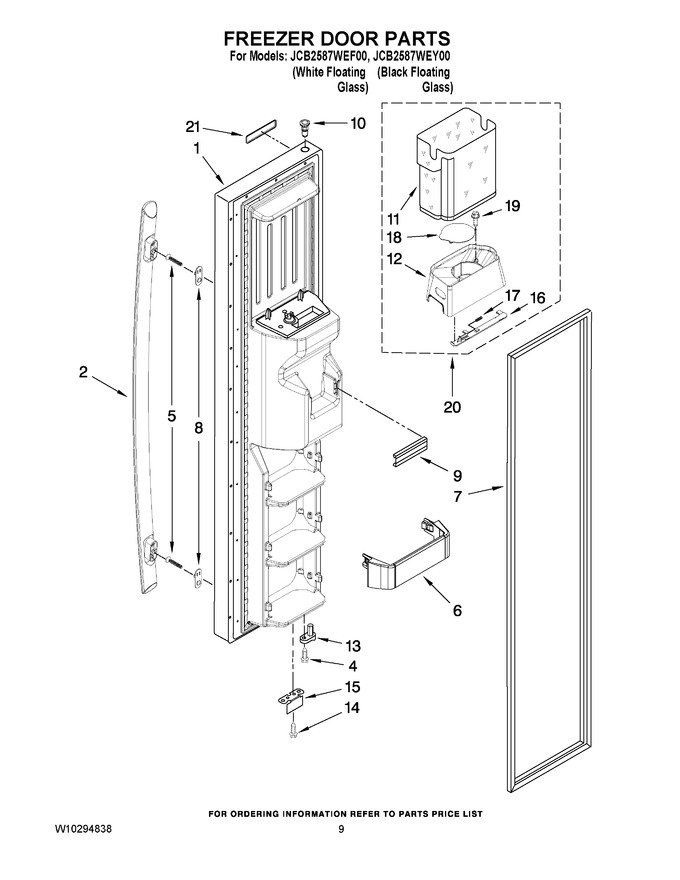

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10202802		Freezer Door (includes No.8 And Dispenser Front Parts) (black Glass)		Appelez-nous	-
1	W10202801		Freezer Door (includes No.8 And Dispenser Front Parts) (white Glass)		Appelez-nous	-
2	W10183427		Handle (black)		Appelez-nous	-
2	W10183426		Handle (white)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: W10142285)				$ 8.26
5	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.51
6	2223559		Shelf Bin (3)				$ 28.77
7	2306995		Door Gasket, Magnetic (black)   (Replaces: 2223910)				$ 331.26
7	2223325		Door Gasket, Magnetic (white)		Appelez-nous	-
8	W10214142		Spacer, Hdl (4) (black)		Appelez-nous	-
8	W10190715		Spacer, Hdl (4) (white)		Appelez-nous	-
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
11	2223317		Upper Bin				$ 74.94
12	W10162938		Lower Bin		Appelez-nous	-
13	2307050		Thimble Cam, Fc				$ 39.47
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2306940		Bracket, Door Stop (white)				$ 101.93
15	2306940B		Bracket, Door Stop (black)				$ 38.97
16	2317272		Latch, Bin		Appelez-nous	-
17	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
18	W10131326		Cover, Crusher		Appelez-nous	-
19	WP3400065		Screw (2)   (Replaces: 3400065)			Immediately	$ 8.18
20	W10162937		Ice Container (complete)		Appelez-nous	-
21	WPW10214168		Nameplate, Ja (black)   (Replaces: W10190724)				$ 85.95
21	W10190723		Nameplate, Ja (white)				$ 111.95
