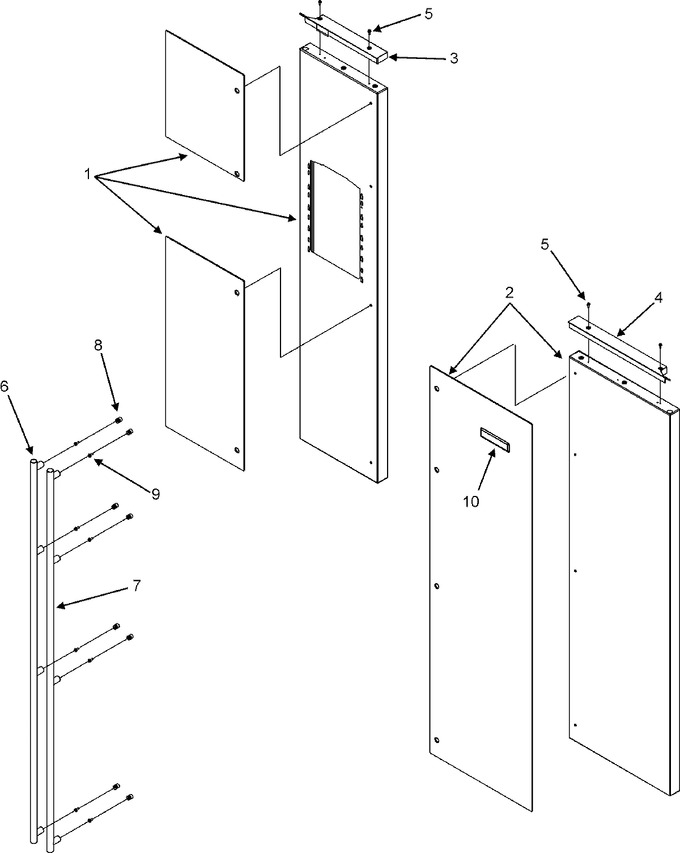

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12895005Y		Door Assy., Frz. Glass (blk)	12	Appelez-nous	-
1	67005455		Door Assy., Frz. Glass (blk)	10	Appelez-nous	-
2	67005186		Door Assy., Ref. Glass (blk)	10	Appelez-nous	-
2	67007050		Door Assy., Ref. Glass (blk)	12	Appelez-nous	-
3	67005709		Extension, Frz Door (blk)	10	Appelez-nous	-
4	67005711		Extension, Ref Door (blk)	10	Appelez-nous	-
5	WP489474		Screw 1``   (Replaces: M0211021)	10		Immediately	$ 7.97
6	67004543		Handle, Frz. Door (stnls)	10	Appelez-nous	-
7	WP12850908		Handle, Ref. Door (stnls)   (Replaces: 67004544)	10			$ 286.31
8	67005148		Mount, Handle	10	Appelez-nous	-
9	67004545		Screw, Handle	10	Appelez-nous	-
10	67004548		Nameplate	10	Appelez-nous	-
