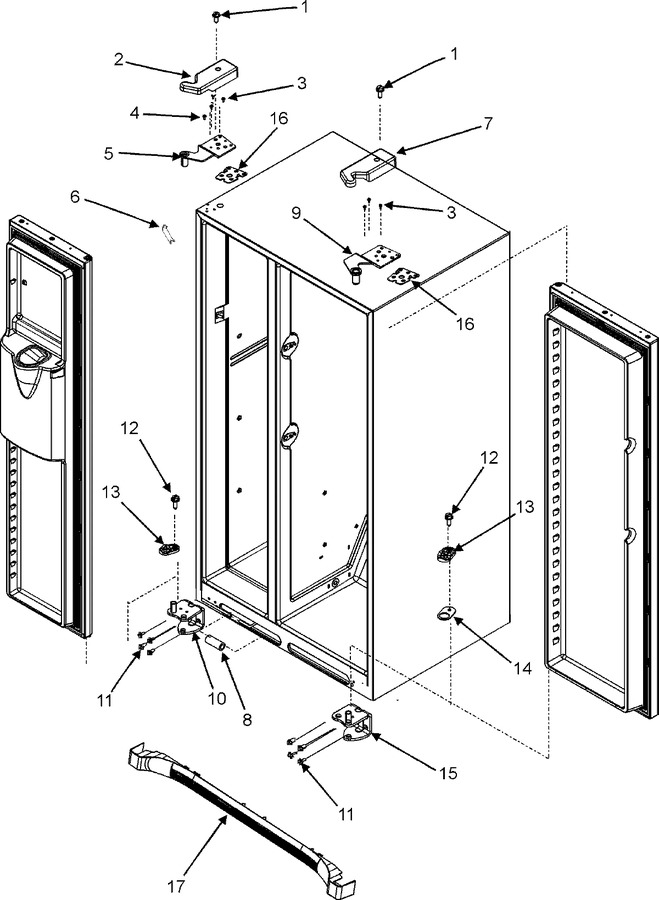

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8281196		Screw-mach   (Replaces: M0202327)	12		Immediately	$ 7.19
2	W10217485		Cover, Top Hinge (lt-blk)   (Replaces: 12629802B)	12			$ 21.64
3	R9800670		Screw, Tf   (Replaces: M0238731)	12			$ 9.38
4	W11214483		Screw, Mach   (Replaces: M0202321)	12			$ 14.02
5	12626911ED		Hinge, Top (lt-blk)   (Replaces: 12626902ED)	12			$ 84.81
6	67003485		Cover, Corner (blk)	12		Immediately	$ 21.09
7	12629801B		Cover, Top Hinge (rt-blk)	12			$ 25.13
8	WP2300868		Union, Tube (5/16``-5/16``)   (Replaces: 61006182)	12		Immediately	$ 29.05
9	12626910ED		Hinge, Top (rt-blk)   (Replaces: 12626901ED)	12			$ 118.92
10	67006685		Hinge, Bottom (lt-blk)	12	Appelez-nous	-
11	67003858		Screw, Bottom Hinge	12	Appelez-nous	-
12	W11227370		Screw, Tc   (Replaces: M0220431)	12		Immediately	$ 14.20
13	67006493		Closure, Door (blk)	12			$ 19.93
14	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)	12			$ 7.46
15	67006686		Hinge, Bottom (rt-blk)	12	Appelez-nous	-
16	12695601		Shim, Top Hinge	12	Appelez-nous	-
17	WP67006687		Grille, Toe (blk)   (Replaces: 67006687)	12			$ 106.44
17	12627302		Clip, Toe Grille	12			$ 5.84
