| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
67005186 |
|
Door Assy., Ref. Glass (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 1 |
67007050 |
|
Door Assy., Ref. Glass (blk) |
12 |
Appelez-nous
|
- |
|
|
|
| 2 |
67006134 |
|
Closure, Door (blk) |
12 |
Appelez-nous
|
- |
|
|
|
| 2 |
R0181181 |
 |
Closure, Door (blk) (Replaces: 12113204) |
10 |
|
Immediately |
$ 7.19 |
|
|
| 2 |
WP8281227 |
 |
Screw, Tc (Replaces: M0220432) |
10 |
|
|
$ 10.44 |
|
|
| 3 |
10961002 |
|
Bushing, Door (blk) |
10 |
Appelez-nous
|
- |
|
|
|
| 4 |
12636401B |
 |
Stop, Door (blk) |
10 |
|
|
$ 10.80 |
|
|
| 4 |
67006516 |
|
Stop, Door (blk) |
12 |
Appelez-nous
|
- |
|
|
|
| 4 |
WP98165 |
 |
Screw, Sm (Replaces: M0211018) |
10 |
|
|
$ 8.00 |
|
|
| 5 |
67004404 |
|
Tray, Butter |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
67004405 |
|
Lid, Butter Tray |
10 |
Appelez-nous
|
- |
|
|
|
| 7 |
W10840101 |
 |
Gasket, Ref. Door (blk) (Replaces: 67003965) |
10 |
|
|
$ 311.67 |
|
|
| 8 |
67004540 |
|
Bucket Assy., Ref. Door |
10 |
|
|
$ 32.69 |
|
|
| 9 |
67004498 |
|
Bucket Assy., Ref. Door |
10 |
Appelez-nous
|
- |
|
|
|
| 10 |
10436506 |
|
Tray, Egg |
10 |
|
|
$ 8.28 |
|
|
| 11 |
67001325 |
|
Door, Dairy |
10 |
Appelez-nous
|
- |
|
|
|
| 12 |
67002304 |
|
Tray, Dairy |
10 |
Appelez-nous
|
- |
|
|
|
| 13 |
10423131 |
|
Bin, Utility |
10 |
|
|
$ 31.13 |
|
|
| 14 |
10436404 |
|
Lid, Utility |
10 |
|
|
$ 60.85 |
|
|
| 15 |
67002294 |
|
Frame, Large Chiller |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
67002297 |
|
Door, Large Chiller (rt) |
10 |
Appelez-nous
|
- |
|
|
|
| 17 |
67004542 |
|
Door, Lg Chiller (lt) |
10 |
Appelez-nous
|
- |
|
|
|
| 18 |
67002296 |
|
Tray, Chiller |
10 |
|
|
$ 26.66 |
|
|
| 19 |
67002291 |
|
Cover, Chiller |
10 |
Appelez-nous
|
- |
|
|
|
| 20 |
67002293 |
|
Linkage, Chiller |
10 |
|
|
$ 11.76 |
|
|
| 21 |
67002292 |
|
Linkage, Ctr Chiller |
10 |
Appelez-nous
|
- |
|
|
|
| 22 |
67004539 |
|
Chiller Assy. |
10 |
Appelez-nous
|
- |
|
|
|

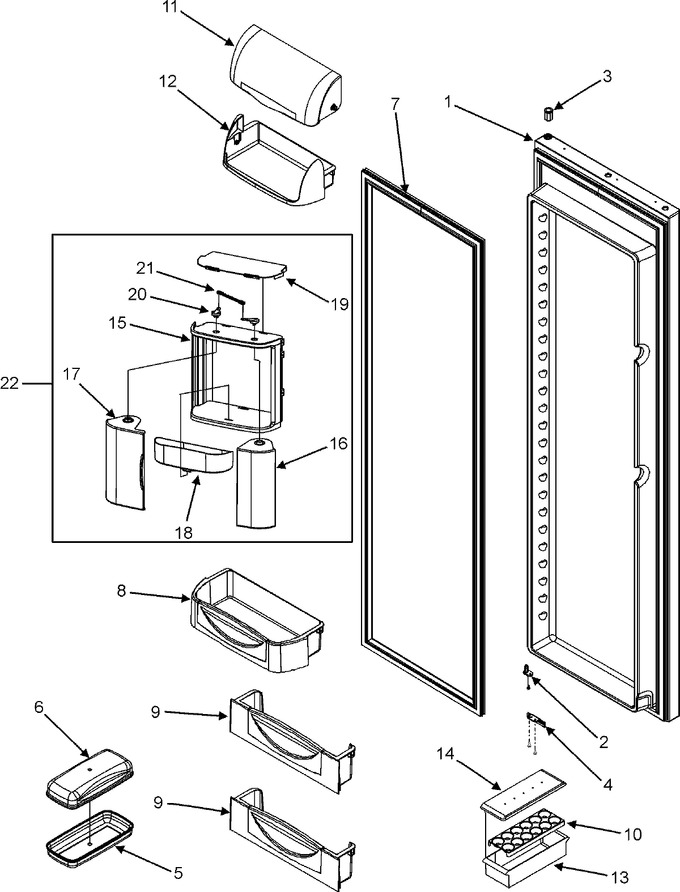

View Diagram in Separate Window
