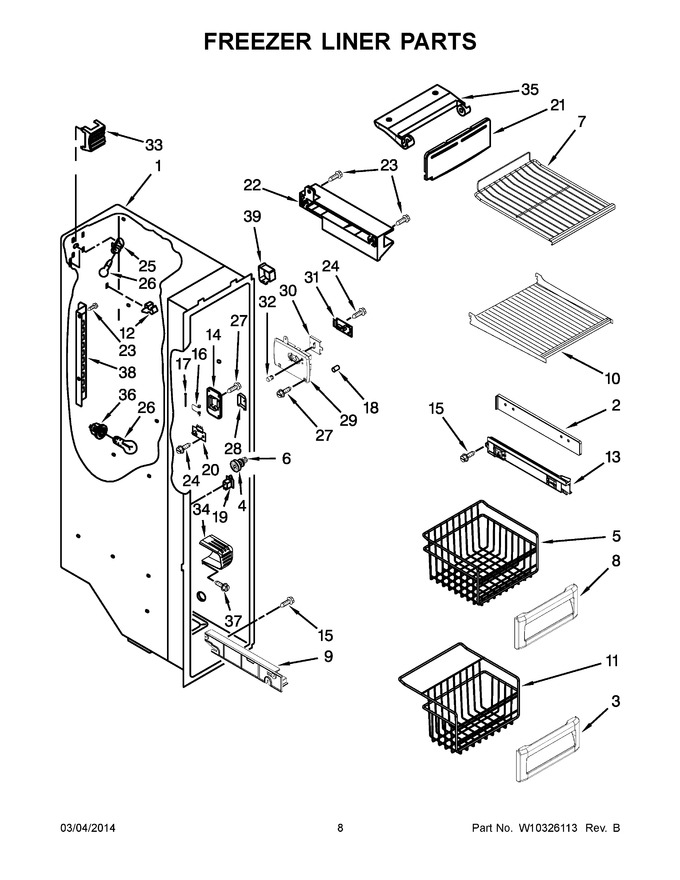

05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	2223777		Spacer, Basket Slide		Appelez-nous	-
3	2224051		Front, Basket		Appelez-nous	-
4	WP2196483		Stud, Shelf   (Replaces: 2196205)				$ 10.87
5	2223691		Basket, Upper				$ 82.80
6	W10191952		Screw				$ 5.65
7	2223500		Shelf, Wire		Appelez-nous	-
8	2224053		Front, Basket				$ 64.68
9	2223788		Track, Basket (left Hand)				$ 40.68
9	2223787		Track, Basket (right Hand)				$ 40.35
10	2223681		Shelf, Fixed				$ 37.08
11	2223694		Basket, Lower				$ 146.94
12	2215823		Clip, Air Duct   (Replaces: 2315163)				$ 10.94
13	2301545		Assembly, Basket Glide (left Hand)				$ 145.88
13	2301544		Assembly, Basket Glide (right Hand)		Appelez-nous	-
14	2259487		Cover, Emitter				$ 68.37
15	8534064		Screw		Appelez-nous	-
16	WP2198635		Spring, Door   (Replaces: 2198635)				$ 91.43
17	WP2198634		Pin, Door   (Replaces: 2198634)				$ 18.65
18	2198665		Tube, Circuit Board				$ 21.52
19	W11457217		Switch, Rocker Arm, Combination(freezer)   (Replaces: 1115373)				$ 40.09
20	W11629974		Board, Emitter Circuit   (Replaces: W10193840)			Immediately	$ 421.12
21	WPW10185438		Cover, Icemaker Front   (Replaces: W10185438)				$ 89.92
22	2306900		Slide, Ice Maker Mounting (left Hand)		Appelez-nous	-
22	2212321		Slide, Ice Maker Mounting (right Hand)				$ 67.14
23	WP489478		Screw   (Replaces: 489478)				$ 8.18
24	2006254		Screw   (Replaces: 489214)				$ 13.79
25	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
26	W11679940		Bulb, Light   (Replaces: W10194422)			Immediately	$ 11.30
27	WPW10142283		Screw (white)   (Replaces: 8281185)				$ 10.33
28	WP2198633		Flipper Shut Off   (Replaces: 2198633)			Immediately	$ 50.68
29	W10173569		Cover, Receiver				$ 66.93
30	2315398		Slide, Ice Maker Shut Off				$ 11.45
31	W11629974		Receiver, Circuit Board   (Replaces: W10290817)			Immediately	$ 421.12
32	WP2198643		Lens, Receiver   (Replaces: 2198643)				$ 8.59
33	2198589		Shield, Light		Appelez-nous	-
34	W11298978		Cover, Light Lens   (Replaces: 2212340)				$ 98.57
35	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.55
36	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
37	W10142289		Screw   (Replaces: 3400893)				$ 9.61
38	2198609		Ladder (left Hand)				$ 42.40
38	2198610		Ladder (right Hand)				$ 63.20
39	2303378		Shield, Wiring				$ 11.88
