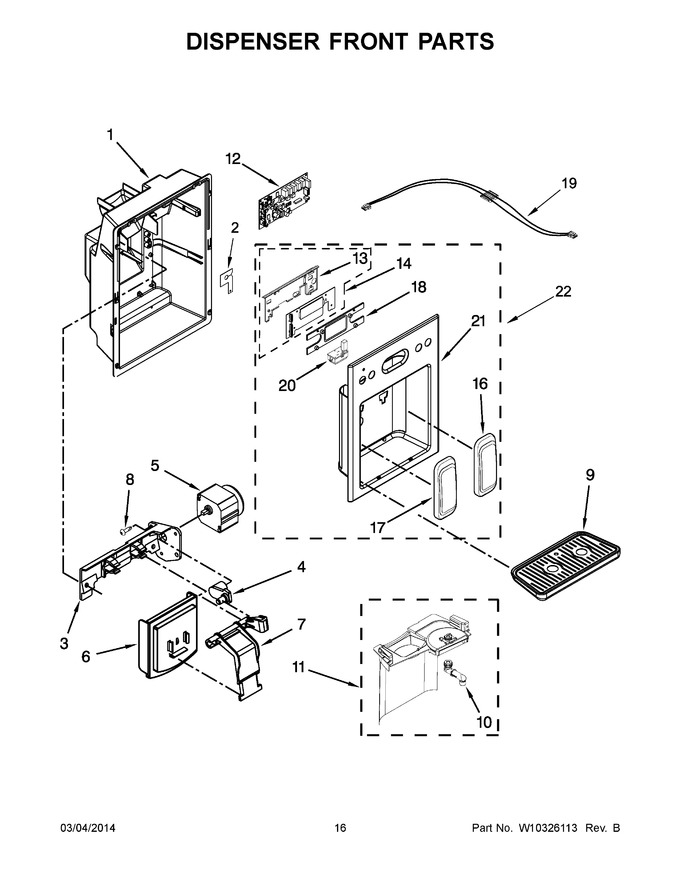

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	2305447		Clip, Wiring		Appelez-nous	-
3	WP2305202		Bracket, Ice Door Motor   (Replaces: 2305202)				$ 101.60
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 101.82
5	WPW10184813		Motor, Ice Door   (Replaces: W10184813)			Immediately	$ 108.33
6	WP2305258		Assembly, Ice Door   (Replaces: 2305258)				$ 26.09
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 92.63
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	2315109NA		Assembly, Tray (nickel)				$ 40.67
10	W10187441		Spigot				$ 119.98
11	2305456		Assembly, Separator				$ 52.30
12	WP2303843		Control, Electronic   (Replaces: 2303843)				$ 365.39
13	2305219		Cover, Control				$ 92.99
14	W10215843		Assembly, User Interface Control		Appelez-nous	-
16	W10133606		Pad, Water (grey)   (Replaces: 2305307AS)				$ 335.00
17	W10133606		Pad, Ice (grey)   (Replaces: 2305306AS)				$ 335.00
18	W10205009		Lens, Front Cover		Appelez-nous	-
19	W10178851		Assembly, User Interface Control Wire		Appelez-nous	-
20	W10222215		Assembly, Led				$ 154.54
21	N/P		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	W10205003		Assembly, Front Cover (stainless)		Appelez-nous	-
