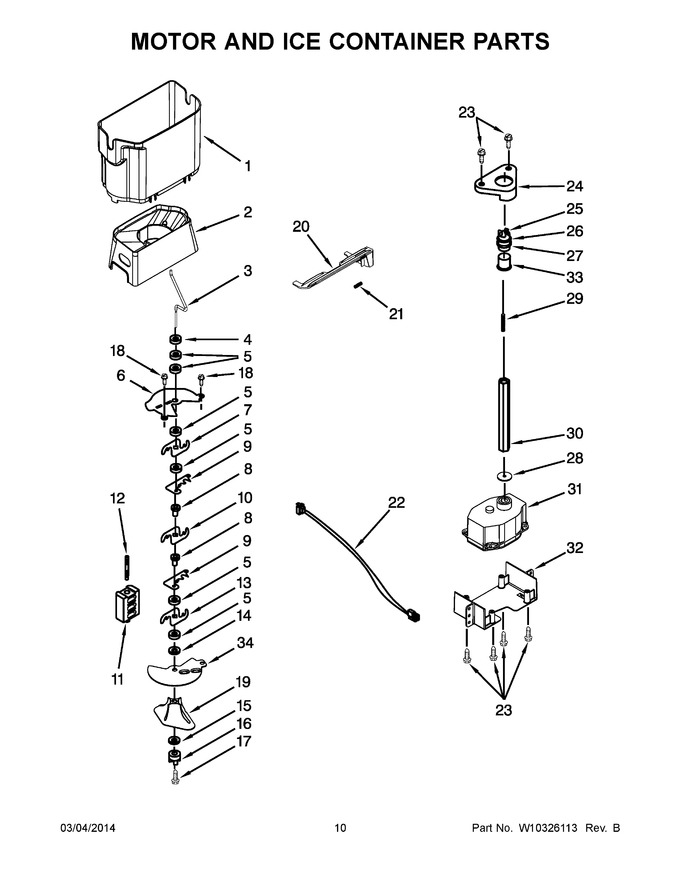

06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10139482		Bin, Ice		Appelez-nous	-
2	W10205004		Bin, Crusher		Appelez-nous	-
3	W10852517		Auger   (Replaces: W10140642)				$ 155.75
4	2258220		Washer, Auger				$ 8.02
5	WP1119007		Spacer, Flat   (Replaces: 1119007)				$ 14.77
6	W10139321		Cover, Crusher		Appelez-nous	-
7	W10278733		Blade, Rotary C				$ 91.00
8	WP1119005		Spacer, Step   (Replaces: 1119005)				$ 11.74
9	2257020		Blade, Fixed				$ 59.91
10	W10278732		Blade, Rotary B				$ 91.00
11	2317239		Block, Blade				$ 11.47
12	489229		Pin, Roll				$ 48.47
13	W10278731		Blade, Rotary A				$ 90.87
14	489235		Washer				$ 8.05
15	WP2198661		Washer Top Coupling   (Replaces: 2198661)				$ 11.45
16	WP2220457		Coupling, Top   (Replaces: 2220457)			Immediately	$ 35.92
17	WP8281164		Screw (stainless)   (Replaces: 8281164)				$ 11.33
18	WP3400065		Screw (stainless)   (Replaces: 3400065)			Immediately	$ 8.18
19	2317243		Wiper				$ 84.91
20	W10140685		Latch, Bin		Appelez-nous	-
21	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 7.55
22	2187813		Wire Harness, Idi Motor				$ 80.38
23	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
24	2212369		Holder				$ 22.63
25	WP2220458		Coupling, Bottom   (Replaces: 2220458)			Immediately	$ 41.04
26	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 12.57
27	WP2212370		Washer   (Replaces: 2212370)				$ 25.35
28	WP2305382		Boot, Rubber   (Replaces: 2305382)				$ 10.71
29	W10852956		Spring, Coupling   (Replaces: 2198607)			Immediately	$ 21.40
30	WP2305243		Shaft, Drive   (Replaces: 2305243)				$ 138.72
31	2252130		Assembly, Dispenser Motor				$ 176.95
32	2305208		Bracket, Motor				$ 69.84
33	WP2212365		Sleeve, Coupling   (Replaces: 2212365)				$ 31.51
34	2317250		Divider Chamber				$ 36.47
100	W10205005		Ice Container (complete)		Appelez-nous	-
