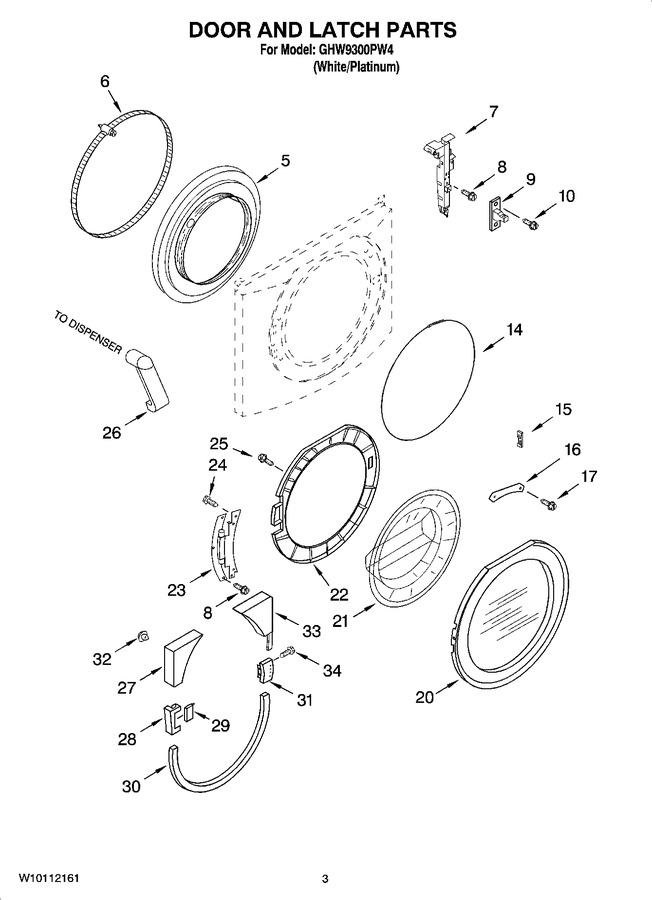

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WP8182119		Bellow   (Replaces: 8182119)			Immediately	$ 187.27
6	WP8182210		Clamp, Bellow   (Replaces: 8181663)			Immediately	$ 35.04
7	WP8182634		Lock, Door   (Replaces: 8182634)			Immediately	$ 107.85
8	WP8540725		Screw   (Replaces: 8181760)				$ 7.68
9	WP8181651		Hook, Door   (Replaces: 8181651)			Immediately	$ 12.46
10	W11230114		Screw   (Replaces: 8181758)				$ 13.28
14	W10902779		Clamp, Bellow Front   (Replaces: 8181664)			Immediately	$ 30.31
15	8181659		Clamp, Support		Appelez-nous	-
16	8181650		Clamp, Glass		Appelez-nous	-
17	8181785		Screw				$ 6.33
20	8181848		Door Frame		Appelez-nous	-
21	8181655		Glass, Door		Appelez-nous	-
22	8182628		Door, Back Support		Appelez-nous	-
23	8181843		Hinge, Door				$ 134.73
24	WP8181660		Screw   (Replaces: 8181660)				$ 6.95
25	WP8540282		Screw   (Replaces: 8181661)				$ 11.56
26	WPW10005300		Tube, Dispenser To Bellow   (Replaces: 8181718)			Immediately	$ 21.19
27	8181842		Trim, Upper Left		Appelez-nous	-
28	8181841		Cover, Hinge (outer)		Appelez-nous	-
29	8181844		Cover, Hinge (inner)		Appelez-nous	-
30	8181840		Trim, Lower		Appelez-nous	-
31	WP8181846		Handle, Door   (Replaces: 8181846)			Immediately	$ 30.47
32	8182779		Clip, Trim				$ 14.04
33	8181839		Trim, Upper Right		Appelez-nous	-
34	WP3400805		Screw   (Replaces: 8181759)				$ 7.19
