SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts

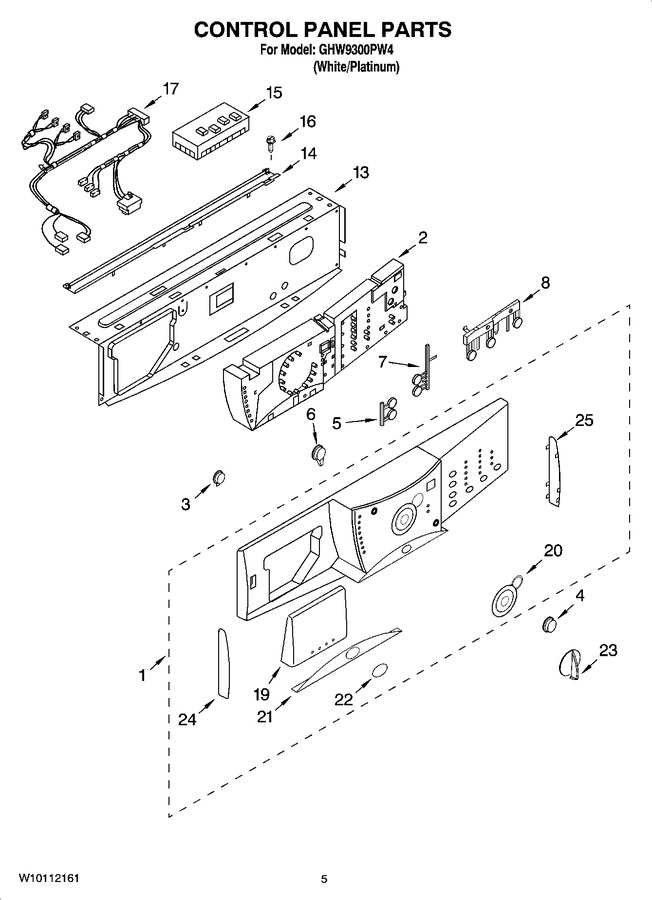

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182716		Panel, Control		Appelez-nous	-
2	8182785		User Interface				$ 278.20
3	8181860		Button, Power				$ 31.30
4	WP8181861		Button, Start   (Replaces: 8181861)				$ 69.96
5	8181863		Button Set, Soil Level				$ 60.60
6	8182275		Button, Pause/cancel		Appelez-nous	-
7	8181889		Button Set, Options				$ 68.05
8	8181865		Button Set, Spin/temperature				$ 64.96
13	8181639		Brace, Front Top		Appelez-nous	-
14	8181640		Channel, Water		Appelez-nous	-
15	8182789		Microcomputer, Machine Control				$ 290.40
16	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
17	8182212		Harness, Wire				$ 139.63
19	WP8181887		Handle, Drawer   (Replaces: 8181887)			Immediately	$ 98.05
20	8181855		Bezel, Knob		Appelez-nous	-
21	8181857		Overlay, Door		Appelez-nous	-
22	8181858		Medallion		Appelez-nous	-
23	WP8181859		Knob, Control   (Replaces: 8181859)			Immediately	$ 41.63
24	8181852		Endcap, Left		Appelez-nous	-
25	8181853		Endcap, Right		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
