01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts

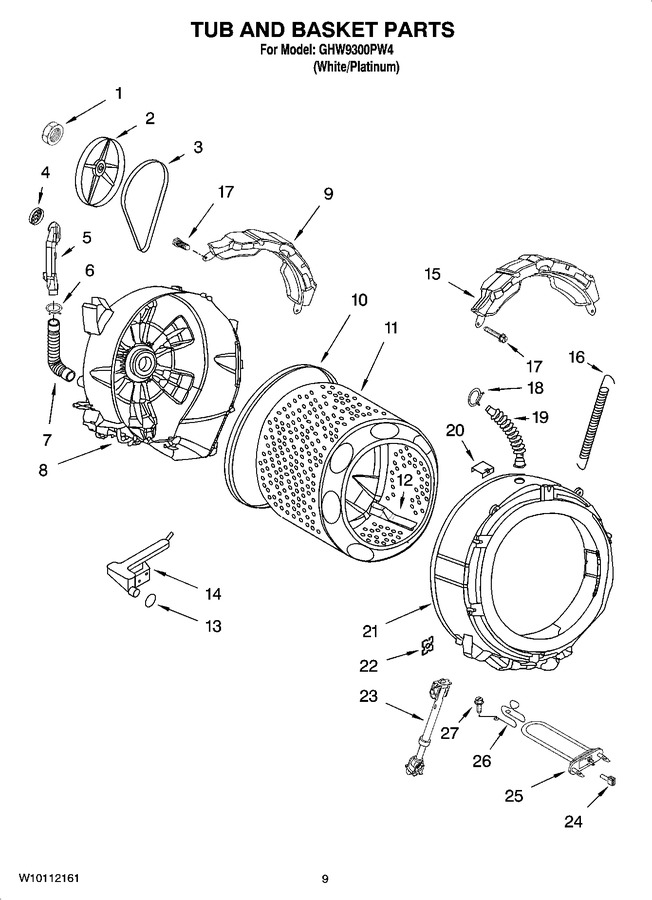

05 - Tub And Basket Parts


06 - Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8182132)			Immediately	$ 79.11
2	WP8182650		Pulley   (Replaces: 8182650)			Immediately	$ 187.69
3	WPW10388414		Belt   (Replaces: 8182633)			Immediately	$ 53.86
4	8181745		Grid, Ventilation				$ 15.11
5	8181744		Pipe, Ventilation				$ 82.50
6	8540010		Clamp   (Replaces: 8181746)				$ 11.18
7	WP8181743		Hose, Exhaust   (Replaces: 8181743)				$ 108.37
8	W10772617		Tub, Rear   (Replaces: 8182284)				$ 669.38
9	8181913		Counterweight, Rear		Appelez-nous	-
10	W10772613		Gasket, Tub   (Replaces: 8181673)				$ 414.50
11	8182232		Basket		Appelez-nous	-
12	WP8182233		Baffle, Tub   (Replaces: 8182233)			Immediately	$ 69.18
13	WPW10250553		O-ring   (Replaces: 8181748)				$ 7.19
14	8181731		Airtrap				$ 29.07
15	WPW10008880		Counterweight, Front   (Replaces: 8181645)				$ 175.92
16	W10135004		Spring, Suspension   (Replaces: 8182814)			Immediately	$ 83.60
17	8181647		Bolt		Appelez-nous	-
18	WP3367052		Clamp   (Replaces: 8181742)				$ 8.32
19	WP8181794		Hose, Tub To Dispenser   (Replaces: 8181794)				$ 38.27
20	WP8540092		Clamp   (Replaces: 8181667)				$ 7.59
21	W10772607		Tub, Front   (Replaces: 8181665)				$ 519.91
22	WP8182512		Nut, Push-in   (Replaces: 8182512)			Immediately	$ 6.95
23	W10822553		Shock Absorber   (Replaces: 8182812)			Immediately	$ 83.35
24	WPW10467289		Ntc   (Replaces: 8182291)			Immediately	$ 47.80
25	WPW10426377		Element, Heating   (Replaces: 8181685)				$ 303.81
26	W10250558		Clamp, Heating Element   (Replaces: 8181686)				$ 12.41
27	WPY706189		Screw, Baffle   (Replaces: 8182126)			Immediately	$ 7.19
27	W11230114		Screw   (Replaces: 8182214)				$ 13.28

    View Diagram in Separate Window       Print Part List
