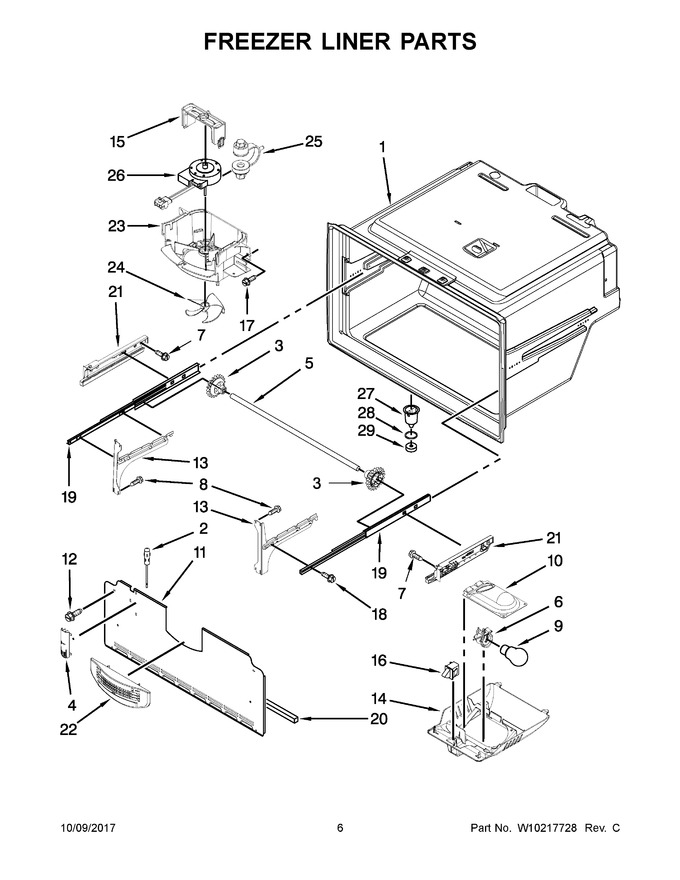

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | 12002355 | Thermistor |
|
Immediately | $ 47.36 | ||||
| 3 | 12002497 | Gear |
|
Immediately | $ 22.51 | ||||
| 4 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 8.21 | |||||
| 5 | W11028221 | Shaft, Rack (Replaces: 67004017) |
|
$ 33.24 | |||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 13.87 | ||||
| 7 | WP489474 | Screw (Replaces: 67006406) |
|
Immediately | $ 8.55 | ||||
| 8 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.57 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Freezer Light (Replaces: 67001035) |
|
$ 90.11 | |||||
| 11 | 67006383 | Cover, Evaporator |
|
- | |||||
| 12 | 67006425 | Screw |
|
Immediately | $ 7.30 | ||||
| 13 | WPW10330994 | Bracket, Door Slide (left Hand) (Replaces: W10119064) |
|
Immediately | $ 169.02 | ||||
| 14 | 67006423 | Module, Freezer Light |
|
$ 54.86 | |||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 67006338) |
|
Immediately | $ 12.24 | ||||
| 16 | W11445850 | Switch, Rocker (Replaces: 67006422) |
|
Immediately | $ 52.62 | ||||
| 17 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 18 | WP3400805 | Screw (Replaces: 67006769) |
|
$ 7.55 | |||||
| 19 | W11658403 | Slide, Drawer (Replaces: W10180420) |
|
Immediately | $ 225.25 | ||||
| 20 | W11451451 | Gasket, Foam (Replaces: 67003731) |
|
$ 13.03 | |||||
| 21 | W10184173 | Adapter (left Hand) |
|
- | |||||
| 22 | W11176847 | Grille, Freezer Air (Replaces: 67006382) |
|
$ 124.16 | |||||
| 23 | W11700329 | Shroud, Evaporator (Replaces: 67006424) |
|
Immediately | $ 61.20 | ||||
| 24 | WP67006337 | Blade, Evaporator Fan (Replaces: 67006337) |
|
Immediately | $ 90.45 | ||||
| 25 | W11676465 | Grommet, Fan Motor (Replaces: 67006339) |
|
Immediately | $ 15.56 | ||||
| 26 | W10850438 | Motor, Evaporator Fan (Replaces: W10162809) |
|
Immediately | $ 306.39 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 28 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 29 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.78 | |||||
| 13A | WPW10330995 | Bracket, Door Slide (right Hand) (Replaces: W10119295) |
|
Immediately | $ 340.61 | ||||
| 21A | W10184175 | Adapter (right Hand) |
|
- |
