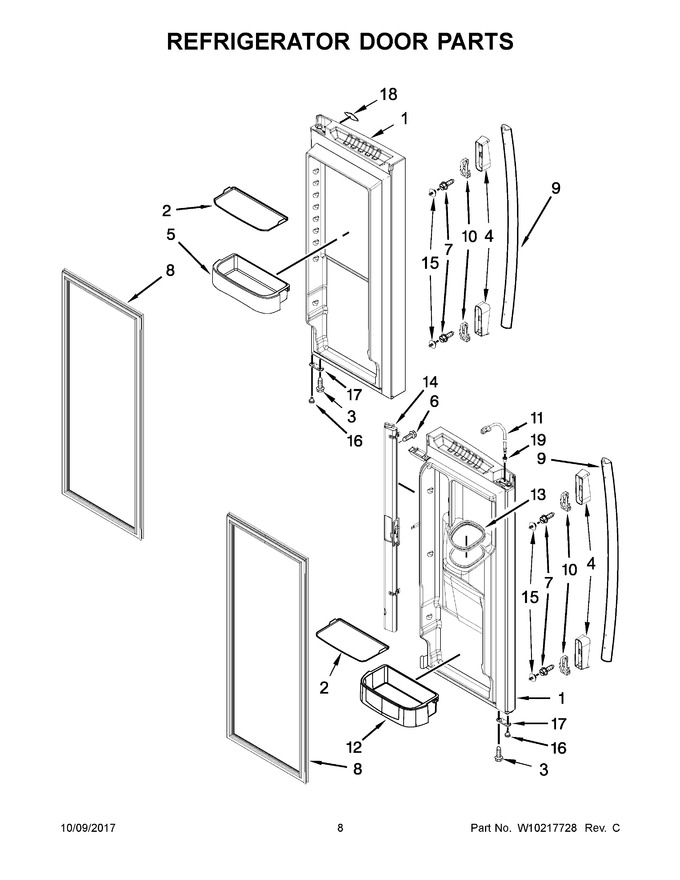

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10174213 | Door, Refrigerator Left Hand (white) |
|
- | |||||
| 2 | W10450032 | Gripper, Bucket (medium) (Replaces: W10138063) |
|
$ 100.87 | |||||
| 3 | WP98165 | Screw (Replaces: 67006473) |
|
$ 8.00 | |||||
| 4 | W10157431 | Endcap, Handle (white) |
|
$ 29.31 | |||||
| 5 | WPW10451500 | Bucket, Medium (Replaces: W10134728) |
|
$ 102.54 | |||||
| 6 | W11311945 | Screw (Replaces: 67006786) |
|
$ 14.02 | |||||
| 7 | W10267047 | Screw (Replaces: W10201588) |
|
$ 12.83 | |||||
| 8 | W11396037 | Gasket, Door (white) (Replaces: W10163896) |
|
$ 297.77 | |||||
| 9 | WPW10222984K | Handle, Door (white) (Replaces: W10157427) |
|
$ 195.68 | |||||
| 10 | 13067102SP | Clip, Handle |
|
$ 27.57 | |||||
| 11 | 12962106 | Tube, Water |
|
$ 126.75 | |||||
| 12 | WPW10451501 | Bucket, Gallon (Replaces: W10134727) |
|
Immediately | $ 104.23 | ||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: 67007108) |
|
Immediately | $ 31.20 | ||||
| 14 | WP12722813W | Mullion, Door (white) (Replaces: 67006307) |
|
$ 325.02 | |||||
| 15 | WP12992902 | Screw (Replaces: 12992902) |
|
$ 11.07 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 67003638) |
|
Immediately | $ 7.76 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 65.99 | |||||
| 18 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 19 | 12996601 | Clip, Bushing Wire (Replaces: 67005954) |
|
$ 10.05 | |||||
| 14A | WPW10151713 | Mullion, Door (black) (Replaces: 67006305) |
|
$ 325.79 | |||||
| 14B | WP12722813W | Mullion, Door (grey) (Replaces: 67006306) |
|
$ 325.02 | |||||
| 16A | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 86.02 | |||||
| 16B | WP12028505AP | Closure, Door (grey) (Replaces: W10191100) |
|
Immediately | $ 61.46 | ||||
| 17A | W11708403 | Stop, Door (black) (Replaces: 67007011) |
|
Immediately | $ 14.05 | ||||
| 17B | W11703060 | Stop, Door (grey) (Replaces: W10191119) |
|
$ 14.72 | |||||
| 1A | W10173928 | Door, Refrigerator Left Hand (black) |
|
$ 520.64 | |||||
| 1B | W10191136 | Door, Refrigerator Left Hand (satina) |
|
- | |||||
| 1C | W10191138 | Door, Refrigerator Left Hand (stainless) |
|
- | |||||
| 1D | W10160132 | Door, Refrigerator Right Hand (white) |
|
- | |||||
| 1E | W10160123 | Door, Refrigerator Right Hand (black) |
|
- | |||||
| 1F | W10191132 | Door, Refrigerator Right Hand (satina) |
|
- | |||||
| 1G | W10191134 | Door, Refrigerator Right Hand (stainless) |
|
- | |||||
| 2A | W10450033 | Gripper, Bucket (gallon) (Replaces: W10138061) |
|
$ 83.12 | |||||
| 4A | W10157432 | Endcap, Handle (black) |
|
- | |||||
| 4B | W10172585 | Endcap, Handle (nickel) |
|
$ 27.18 | |||||
| 8A | W11378944 | Gasket, Door (black) (Replaces: W10163898) |
|
Immediately | $ 187.59 | ||||
| 8B | W10830055 | Gasket, Door (grey) (Replaces: W10163991) |
|
Immediately | $ 229.10 | ||||
| 9A | W10157428 | Handle, Door (black) |
|
$ 75.37 | |||||
| 9B | W11351147 | Handle, Door (stainless) (Replaces: W10157430) |
|
$ 188.78 |
