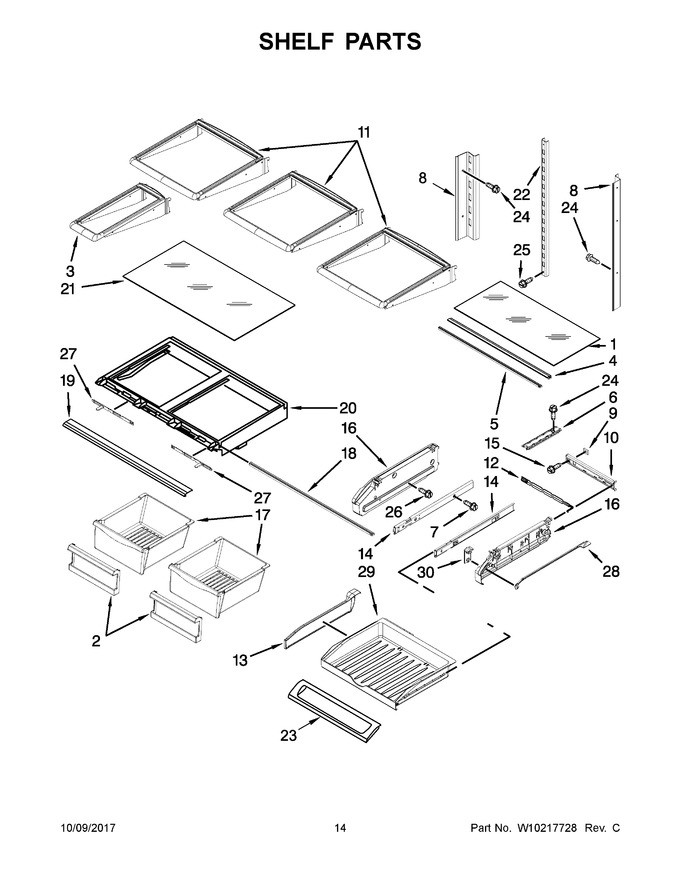

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67002332 | Glass, Pantry (Replaces: 67002332) |
|
Immediately | $ 239.33 | ||||
| 2 | WP67005923 | Front, Crisper Pan (Replaces: 67005923) |
|
$ 75.36 | |||||
| 3 | W10187463 | Shelf, Mini (stationary) |
|
$ 257.90 | |||||
| 4 | W11812285 | Extrusion, Glass Support (Replaces: 67006010) |
|
$ 50.79 | |||||
| 5 | WP12227305WD | Brace, Pantry (Replaces: 67002330) |
|
$ 103.20 | |||||
| 6 | WP67001719 | Track, Drawer (Replaces: 67001719) |
|
Immediately | $ 8.56 | ||||
| 7 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.00 | |||||
| 8 | 67006354 | Ladder, Side (left Hand) |
|
- | |||||
| 9 | 67002329 | Gasket, Pantry |
|
$ 21.04 | |||||
| 10 | 12656202 | Housing, Control (Replaces: 67005625) |
|
$ 141.75 | |||||
| 11 | WP12463912 | Shelf, Glide (Replaces: 12463912) |
|
$ 294.83 | |||||
| 12 | WP67003793 | Slide, Pantry (Replaces: 67003793) |
|
Immediately | $ 74.75 | ||||
| 13 | WP67002321 | Divider, Pantry (Replaces: 67002321) |
|
$ 32.18 | |||||
| 14 | WPW10235370 | Glide, Drawer (Replaces: 67007026) |
|
Immediately | $ 199.80 | ||||
| 15 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 6.95 | ||||
| 16 | WP12656105 | Endcap, Pantry (left Hand) (Replaces: 67005862) |
|
Immediately | $ 55.63 | ||||
| 17 | WP67002659 | Pan, Crisper (Replaces: 67002659) |
|
Immediately | $ 147.67 | ||||
| 18 | WP12227304WD | Brace, Crisper Cover (Replaces: 67002488) |
|
$ 103.51 | |||||
| 19 | 12530651 | Trim, Crisper |
|
- | |||||
| 20 | WP67006185 | Frame, Crisper (also Order Gasket W10177506 Qty. 2) (Replaces: 67006185) |
|
$ 216.05 | |||||
| 21 | WP67006655 | Glass, Crisper (Replaces: 67006655) |
|
Immediately | $ 228.45 | ||||
| 22 | 67006358 | Ladder, Center |
|
- | |||||
| 23 | W10827015 | Lid, Pantry Drawer (Replaces: 67005903) |
|
Immediately | $ 175.81 | ||||
| 24 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 6.95 | ||||
| 25 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.13 | |||||
| 26 | WP67006415 | Screw (Replaces: 67006415) |
|
$ 7.80 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 7.81 | ||||
| 28 | 67003794 | Bar, Temperature Control |
|
$ 13.16 | |||||
| 29 | W11490183 | Drawer, Pantry (Replaces: 67003530) |
|
$ 137.42 | |||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 67003791) |
|
$ 29.18 | |||||
| 16A | WP12656018 | Endcap, Pantry (right Hand) (Replaces: 67005857) |
|
Immediately | $ 58.87 | ||||
| 8A | 67007115 | Ladder, Side (right Hand) |
|
- |
