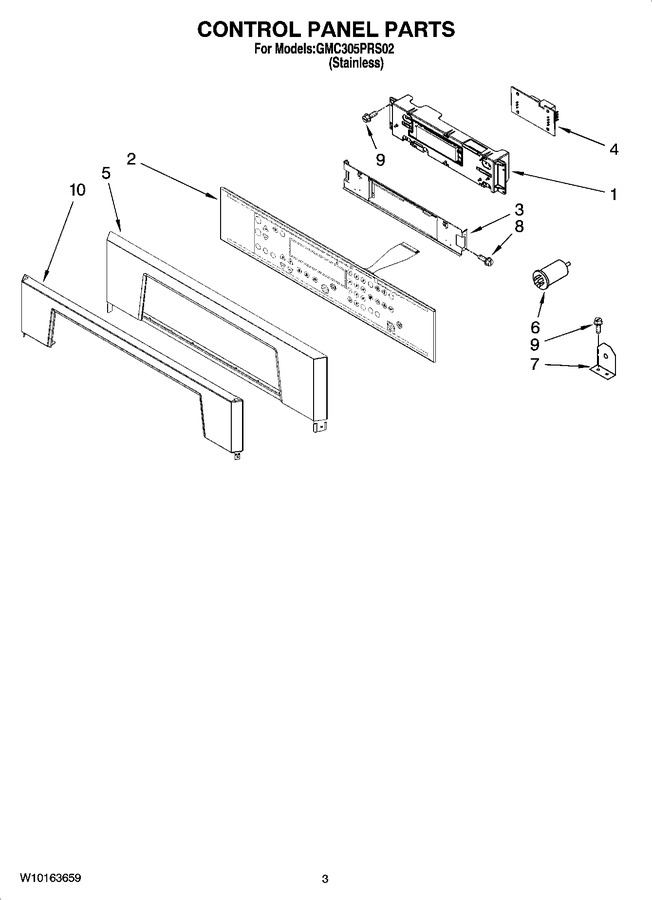

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10105800		Assembly, Control		Appelez-nous	-
2	8303948		Assembly, Switch		Appelez-nous	-
3	W10153086		Backer, Control		Appelez-nous	-
4	8301848		Board, Motorized Latch				$ 184.23
5	WP8302848		Control Panel   (Replaces: 8302848)				$ 314.81
6	4451592		Filter				$ 35.89
7	4451632		Bracket, Filter		Appelez-nous	-
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
10	W10144998		Trim, Cooktop		Appelez-nous	-
