SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts, Optional Parts (not Included)

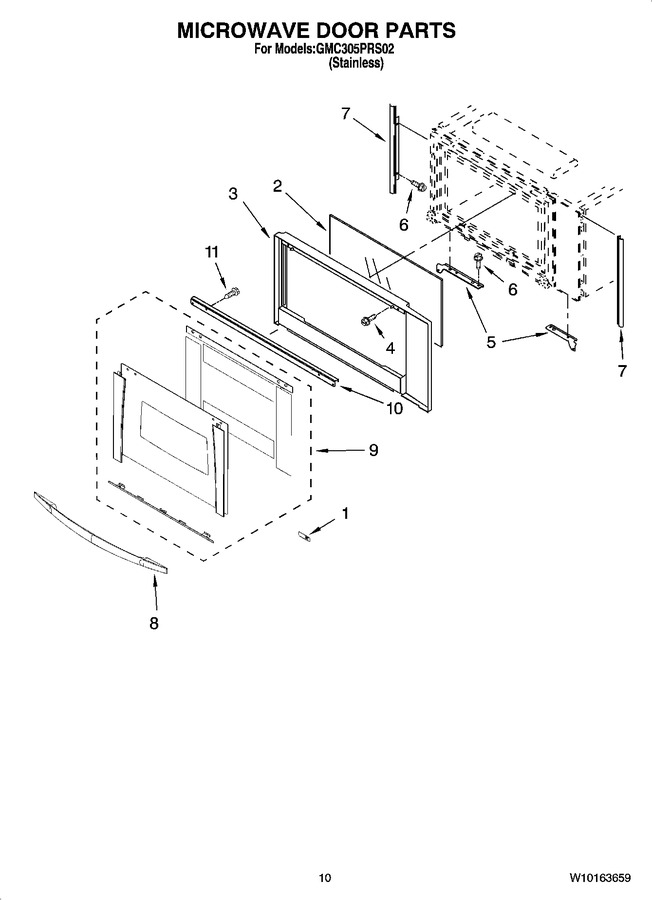

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303810		Name Plate		Appelez-nous	-
2	4450834		Glass, Middle		Appelez-nous	-
3	WP8303556		Frame, Door   (Replaces: 8303556)				$ 265.47
4	WP4450038		Screw   (Replaces: 4450038)				$ 7.60
5	4449142		Bracket, Mounting (left)				$ 52.12
5	4449141		Bracket, Mounting (right)				$ 31.33
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
7	4449083		Filler, Side (right)				$ 36.44
7	4449086		Filler, Side (left)				$ 36.10
8	8303164		Handle, Door		Appelez-nous	-
9	W10151072		Glass, Outer		Appelez-nous	-
10	8303169		Bracket, Handle		Appelez-nous	-
11	W10276642		Screw   (Replaces: 4451040)				$ 6.10

    View Diagram in Separate Window       Print Part List
