SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

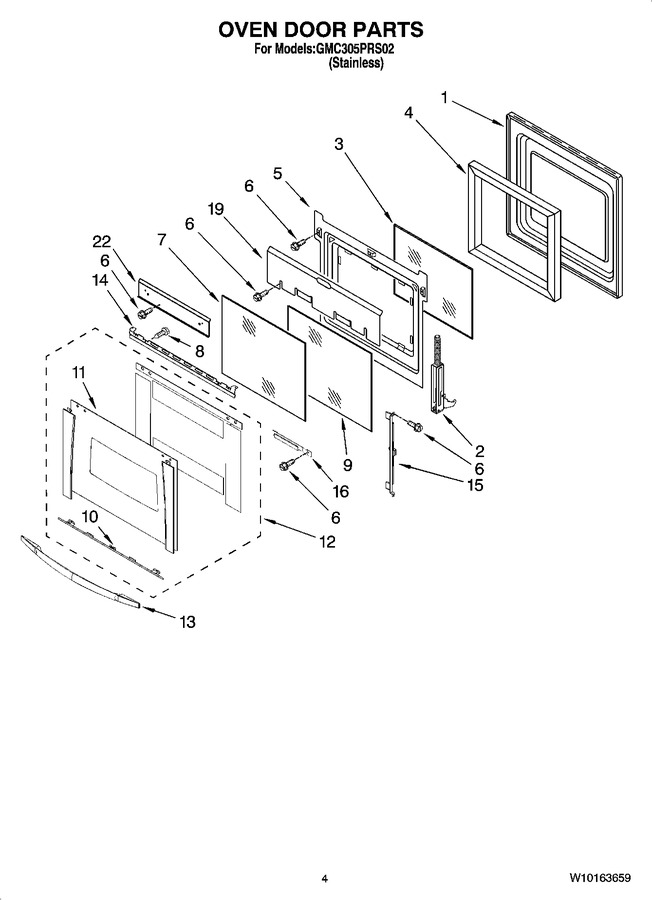

03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Door   (Replaces: 9759413)				$ 370.46
2	WP9760578		Hinge, Door (left)   (Replaces: 9760578)			Immediately	$ 115.46
2	WP9760577		Hinge, Door (right)   (Replaces: 9760577)			Immediately	$ 116.54
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door And Bottom Door   (Replaces: 4451722)				$ 189.77
5	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 320.99
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 194.20
8	W10276642		Screw   (Replaces: 4451040)				$ 6.41
9	9759228		Glass, Inner Door				$ 87.91
10	8303389BL		Clip, Door		Appelez-nous	-
11	W10144995		Wings (right)		Appelez-nous	-
11	W10144994		Wings (left)		Appelez-nous	-
12	W10151080		Assembly, Door Glass		Appelez-nous	-
13	8303164		Handle, Door		Appelez-nous	-
14	W10136473		Bracket, Handle		Appelez-nous	-
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
19	4457104		Shield, Heat   (Replaces: 4457103)				$ 39.22
22	4457114		Shield, Heat-bottom				$ 217.79

    View Diagram in Separate Window       Print Part List
