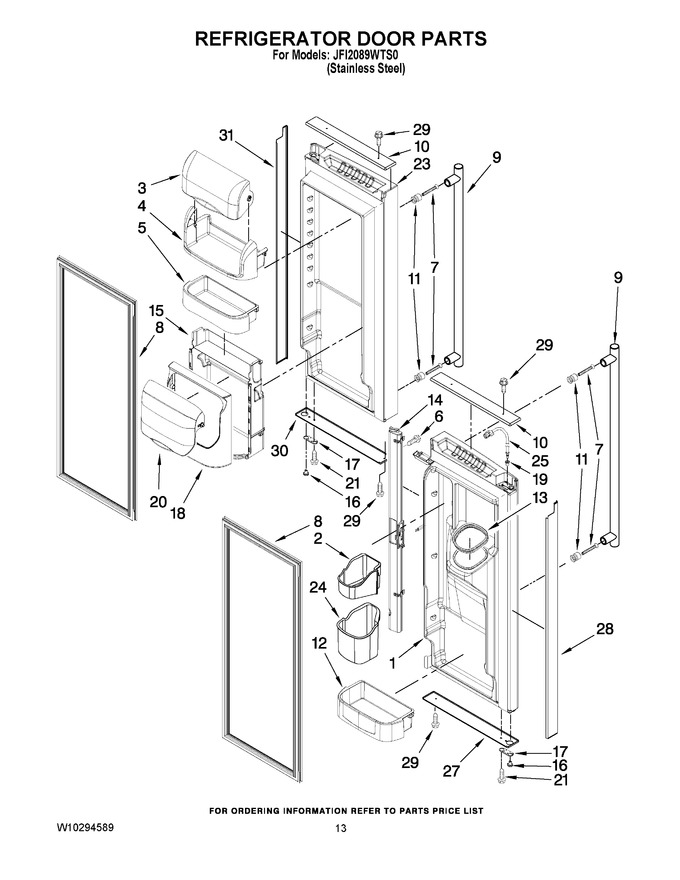

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12978078BQ		Door, Left (black)		Appelez-nous	-
2	W10187453		Bin, Upper Door   (Replaces: 12977401)				$ 69.60
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 78.73
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 83.82
5	WP67006313		Bin, Shelf (chiller Top)   (Replaces: 12945801SP)			Immediately	$ 80.59
6	W11311945		Screw   (Replaces: 12990204)				$ 14.02
7	WPW10133608		Screw, Handle   (Replaces: 12991202)				$ 8.30
8	W11378944		Gasket, Door (black)   (Replaces: W10163898)			Immediately	$ 187.59
9	WPW10298244		Handle, Door (stainless)   (Replaces: W10237393)				$ 311.46
10	13004501S		Trim, Door Top		Appelez-nous	-
11	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.96
12	WP12840004		Bin, Shelf (gallon)   (Replaces: 12840004)				$ 90.37
13	WPW10287601		Seal, Ice Chute   (Replaces: 12999902)			Immediately	$ 31.20
14	12722813BKV		Mullion, Door (black)		Appelez-nous	-
15	W11266639		Frame, Chiller (rear)   (Replaces: 12945601SP)				$ 256.79
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 86.02
17	W11708403		Stop, Door (black )   (Replaces: 12968202B)			Immediately	$ 14.05
18	W11266639		Frame, Chiller (front)   (Replaces: 12945501SP)				$ 256.79
19	12996601		Clip, Bushing Wire (left Door)				$ 10.05
20	WP67006312		Door, Chiller   (Replaces: 12945701SP)			Immediately	$ 82.18
21	WP98165		Screw   (Replaces: 12990521)				$ 8.00
23	12978077BQ		Door, Right (black)		Appelez-nous	-
24	12977501		Bin, Lower Door		Appelez-nous	-
25	12962106		Waterline, Door				$ 126.75
27	13004504S		Trim, Door Bottom		Appelez-nous	-
28	13004601S		Trim, Door Side		Appelez-nous	-
29	W10854958		Screw, Trim (6)   (Replaces: 12990302)				$ 7.43
30	13004505S		Trim, Door Bottom		Appelez-nous	-
31	13004602S		Trim, Door Side		Appelez-nous	-
