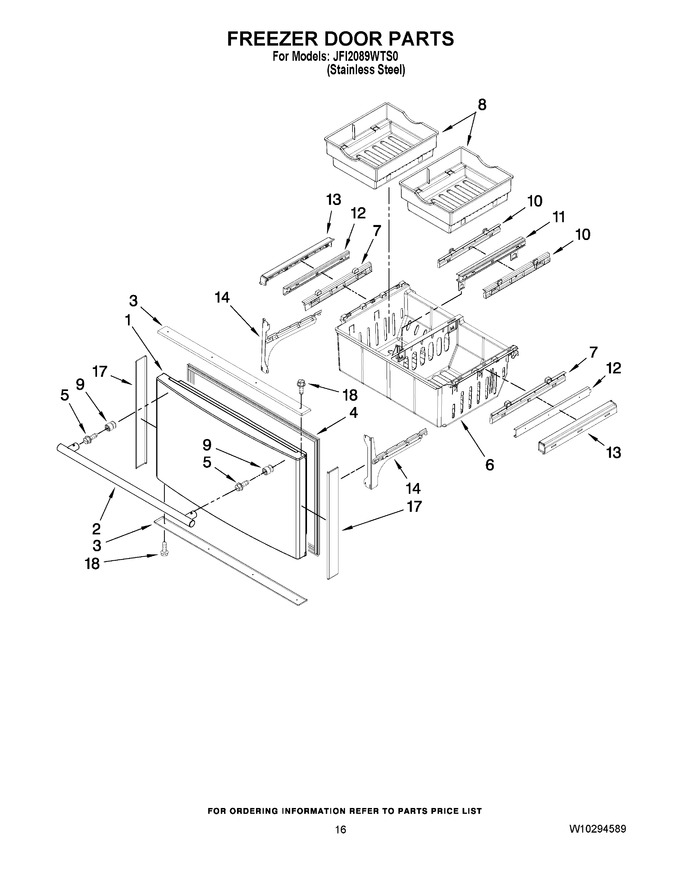

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977808BQ		Freezer Door (black)		Appelez-nous	-
2	WPW10298179		Handle, Door (stainless)   (Replaces: W10237389)				$ 304.47
3	W10187661		Trim, Door (top & Bottom)   (Replaces: 13004502S)		Appelez-nous	-
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 343.70
5	WPW10133608		Screw, Handle   (Replaces: 12991202)				$ 8.30
6	13002801SP		Bin, Lower		Appelez-nous	-
7	W10187469		Adapter, Bin (outer)   (Replaces: 13002603SP)				$ 87.89
8	W10184227		Bin, Upper   (Replaces: 13002402)			Immediately	$ 116.30
9	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.96
10	W10184223		Adapter, Bin (center)   (Replaces: 13002604SP)				$ 92.51
11	W10235358		Bracket/glide Assembly   (Replaces: 12969702)				$ 302.94
12	WPW10235368		Glide, Upper   (Replaces: 12925102)				$ 319.83
13	W10826790		Retainer, Glide (left)   (Replaces: 13002701SP)				$ 59.50
13	W10826791		Retainer, Glide (right)   (Replaces: 13002702SP)				$ 59.50
14	WPW10330994		Bracket, Door Slide (left)   (Replaces: W10119064)			Immediately	$ 161.64
14	WPW10330995		Bracket, Door Slide (right)   (Replaces: W10119295)			Immediately	$ 324.39
17	13005201S		Trim, Door Side		Appelez-nous	-
18	W10854958		Screw, Trim (8)   (Replaces: 12990302)				$ 7.43
