SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts

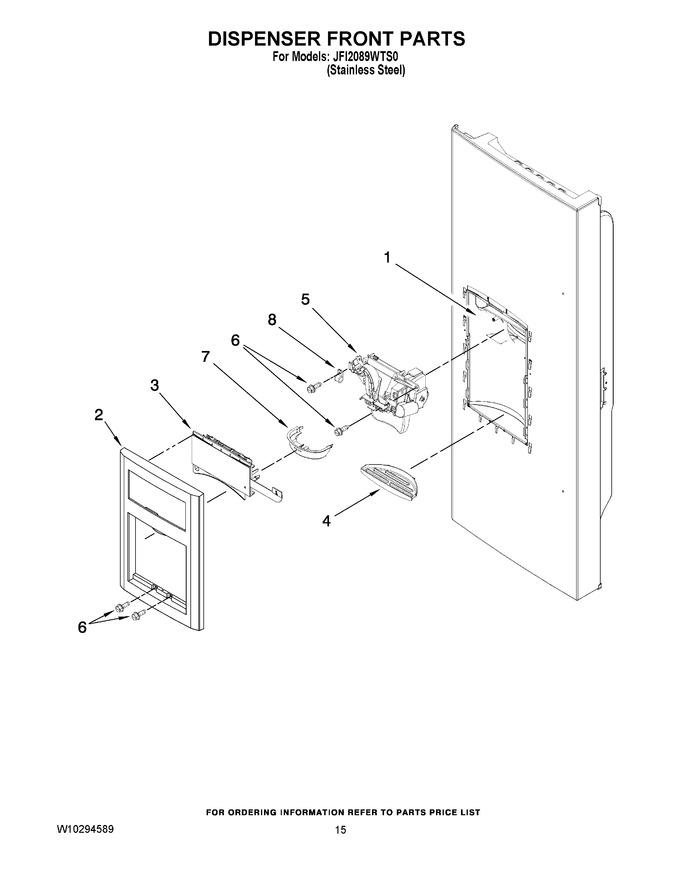

08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	13051017BSP		Facade, Dispenser (black)		Appelez-nous	-
2	13052403SP		Facade, Dispenser (black (with Clad))		Appelez-nous	-
3	W10259995		Control Assembly (black)		Appelez-nous	-
4	13050701B		Sump, Dispenser (black)		Appelez-nous	-
5	WP13005702B		Chute, Ext/yoke (includes Switch) (black)   (Replaces: 13005702B)				$ 314.55
6	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
7	67006295		Ring, Target   (Replaces: 12958301)				$ 52.92
8	M0108106		Clamp, Tube				$ 66.62
