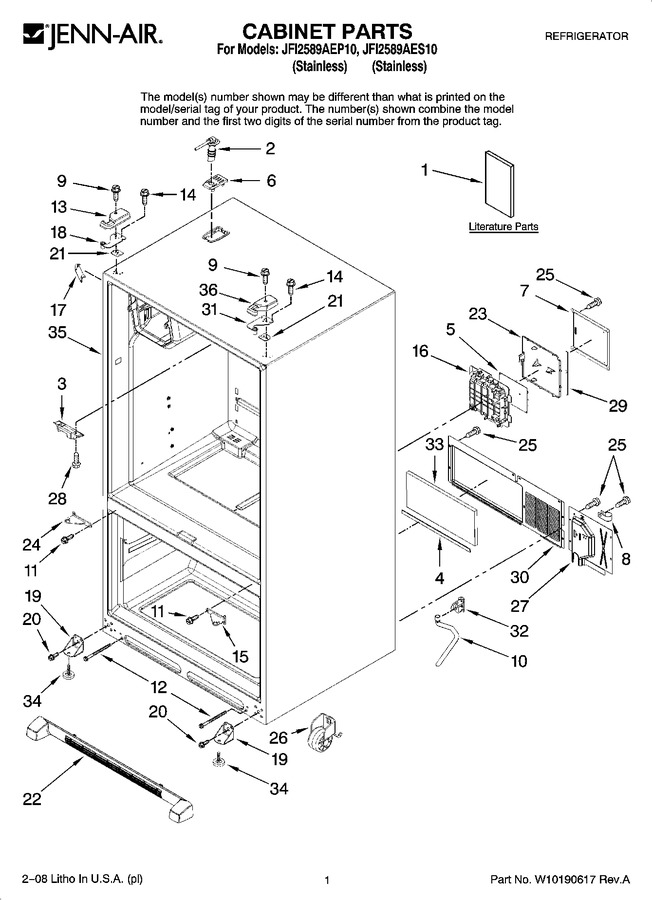

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10189629		Use & Care Guide		Appelez-nous	-
1	W10190618		Guide, Energy		Appelez-nous	-
1	16026312		Service Manual (bottom Mount)		Appelez-nous	-
1	W10189628		Tech Sheet		Appelez-nous	-
2	W11415785		Tube W/waterline, Fill-im   (Replaces: 67006317)			Immediately	$ 62.39
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 8.21
4	B5759649		Gasket, Mc Back		Appelez-nous	-
5	WPW10310240		Board, Hv Control   (Replaces: W10164420)			Immediately	$ 391.86
6	12981401B		Cover, Fill Tube (black)   (Replaces: 67006320)				$ 13.25
7	67006427		Cover, Control Box		Appelez-nous	-
8	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
9	WP8281196		Screw, Hinge Cover   (Replaces: 67006521)			Immediately	$ 7.55
10	W10164397		Tube, Drain				$ 15.53
11	W11573362		Screw, Center Hinge   (Replaces: 67006380)				$ 14.72
12	71003131		Bolt, Roller Adj   (Replaces: 67006611)			Immediately	$ 7.08
13	W10337647		Cover, Top Hinge (left) (black)   (Replaces: 67005951)			Immediately	$ 23.33
14	WP489349		Screw, Top Hinge   (Replaces: 67006303)			Immediately	$ 8.43
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 67006443)				$ 91.53
16	WP67006390		Box, Hv Control   (Replaces: 67006390)				$ 214.59
17	67003485		Cover, Corner (2) (black)			Immediately	$ 22.14
18	W11592375		Hinge, Top Left   (Replaces: 67005950)				$ 31.92
19	12906303WD		Bracket, Foot Cabinet (2)   (Replaces: 67007174)				$ 88.58
20	67006564		Screw (8)			Immediately	$ 8.15
21	12999502		Shim, Top Hinge (right)   (Replaces: 67006309)				$ 100.60
21	12999501		Shim, Top Hinge (left)   (Replaces: 67006308)				$ 99.53
22	WPW10534153		Grille, Toe (black)   (Replaces: 67006375)				$ 154.57
23	67006428		Lid, Hv Control				$ 62.55
24	67006442		Hinge, Center (lt) (black)				$ 120.77
25	67006425		Screw, Cover			Immediately	$ 7.30
26	67006118		Roller Assy. (2)		Appelez-nous	-
27	67006426		Cover, Water Valve		Appelez-nous	-
28	W11233072		Screw, Block   (Replaces: 67006626)			Immediately	$ 14.72
29	67006429		Gasket, Hv Control				$ 11.24
30	12575101ED		Cover, Mc Back		Appelez-nous	-
31	W11592374		Hinge, Top Right   (Replaces: 67005955)			Immediately	$ 31.90
32	67001067		Clip, Drain Tube				$ 9.66
33	67003796		Fiber, Acoustic				$ 19.27
34	W11177593		Brake, Foot   (Replaces: 67003868)				$ 12.18
36	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 67005956)				$ 22.54
