SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts

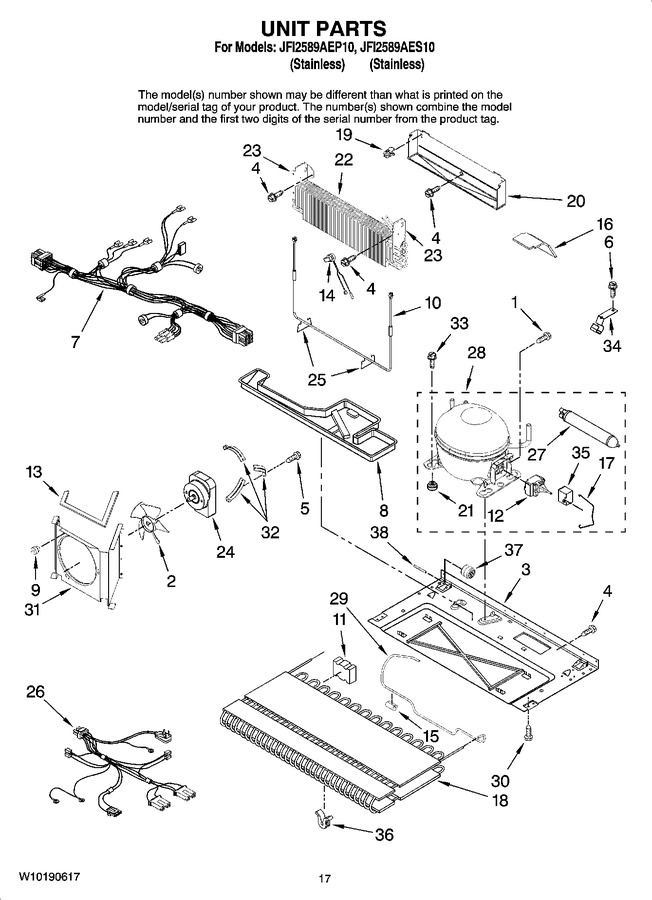

10 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	67005889		Basepan		Appelez-nous	-
4	67006425		Screw			Immediately	$ 6.95
5	WP67004954		Screw (3)   (Replaces: 67004954)				$ 7.79
6	WP33001882		Screw, Clip   (Replaces: 67006737)				$ 79.72
7	W10850438		Harness, Evap Heater   (Replaces: W10119239)			Immediately	$ 306.39
8	WP12579803		Pan, Drain   (Replaces: 67007175)				$ 245.45
9	61004743		Grommet (3)				$ 5.51
10	W10162932		Heater, Defrost		Appelez-nous	-
11	67005491		Block, Condenser		Appelez-nous	-
12	WPW10197428		Start Device   (Replaces: W10128791)			Immediately	$ 89.21
13	WP854334		Seal, Condenser Shroud   (Replaces: 61003210)				$ 13.28
14	WP67006387		Thermostat, Defrost   (Replaces: 67006387)			Immediately	$ 117.68
15	67005680		Grommet (2)				$ 21.05
16	12820504		Pad-acoustic				$ 52.08
17	2255199		Clip, Capacitor		Appelez-nous	-
18	WP67006131		Condenser   (Replaces: 67006131)				$ 366.74
19	10623002		Clip, Evaporator				$ 11.53
20	W11547653		Tray, Drip   (Replaces: 67002490)				$ 54.30
21	WPW10169124		Grommet (4)   (Replaces: W10169124)			Immediately	$ 7.19
22	12002730		Evaporator   (Replaces: W10184230)				$ 346.32
23	W10162951		Dam (right Side)		Appelez-nous	-
23	W10162962		Dam (left Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	13060202		Harness, Unit With Power Cord				$ 96.21
27	WPW10143759		Drier   (Replaces: 2317845)			Immediately	$ 30.78
28	W10160407		Compressor (includes Items 11, 12, 17, 27, & 35)   (Replaces: W10134623)				$ 599.92
29	W10134293		Tube, Discharge				$ 55.52
30	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
31	W10158508		Shroud		Appelez-nous	-
32	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 68.83
33	12846902		Screw (3)   (Replaces: 67006432)				$ 12.99
34	10547003		Clip, Drier		Appelez-nous	-
35	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
36	WPW10137529		Grommet, Cond. (4)   (Replaces: W10137529)				$ 8.34
37	WP67005149		Roller (2)   (Replaces: 67005149)			Immediately	$ 22.02
38	67006434		Axle (2)			Immediately	$ 7.52
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 12.18
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 173.95
NI	876370		Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
NI	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
NI	72032		Brush Touch-up Kit (black)			Immediately	$ 18.69
NI	72017		Brush Touch-up Kit (white)			Immediately	$ 12.30
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	350942		Primer, White (13 Oz. Spray Can)				$ 89.66
NI	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
NI	350930		Enamel, White (13 Oz. Spray Can)			Immediately	$ 38.21
NI	4392901		Enamel, Bisque (12 Oz. Spray Can)   (Replaces: 22002901)		Appelez-nous	-
NI	4392899		Enamel, Bisque (.6 Oz. Bottle)   (Replaces: 22002900)			Immediately	$ 26.45
NI	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
NI	799344		Enamel, White (1 Qt. Uncut)				$ 237.46
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	876370		Kit, Insulation (2 Pcs. X 3`` X 24``x 48``)				$ 231.56
NI	876029		Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``)		Appelez-nous	-
NI	01300019EA		Cleaner, Stnls Steel Magic   (Replaces: 20000008)			Immediately	$ 23.63
NI	606755		Bag, Insulation(36-5/8`` X 46``)				$ 78.45
NI	833938		Kit, Terminal Connector				$ 8.07
NI	WPW10324090		Ice Container Assembly   (Replaces: 67006349)				$ 347.67
NI	1117510		Torx Key				$ 5.84

    View Diagram in Separate Window       Print Part List
