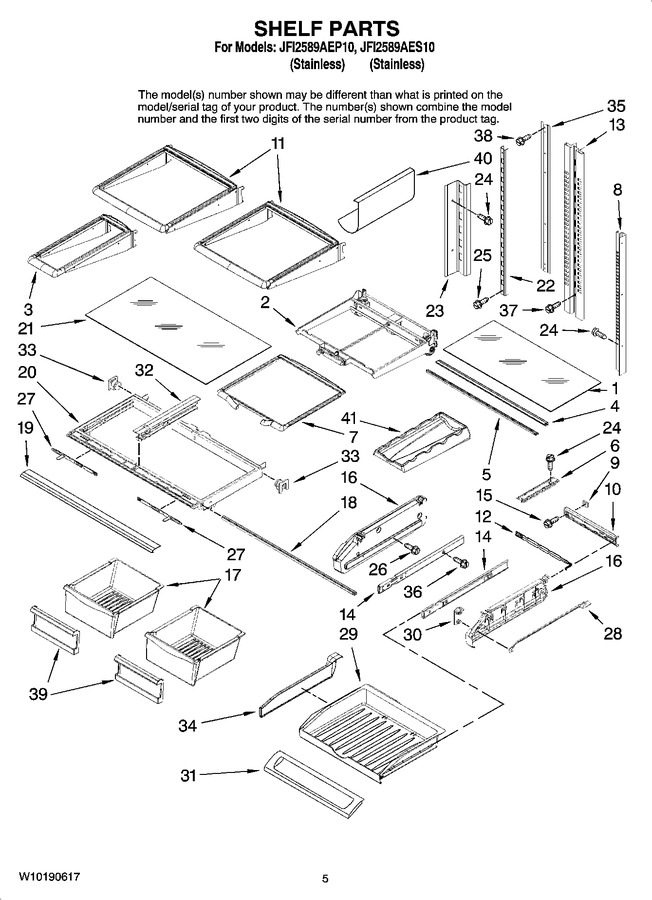

03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Icemaker Parts


06 - Freezer Liner Parts


07 - Refrigerator Door Parts


08 - Dispenser Front Parts


09 - Freezer Door Parts


10 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002761		Glass, Pantry				$ 103.45
2	12753917		Frame Assy., Elevator Shelf		Appelez-nous	-
3	W10187852		Shelf, Mini (stationary)		Appelez-nous	-
4	W11812285		Extr, Glass Support (2)   (Replaces: 67006010)				$ 53.33
5	WP12227305WD		Brace, Pantry (2)   (Replaces: 67002330)				$ 108.36
6	WP67001719		Track, Pantry   (Replaces: 67001719)			Immediately	$ 8.99
7	W10187854		Shelf, Elevator		Appelez-nous	-
8	67006355		Ladder, Side Elevator		Appelez-nous	-
9	67002329		Gasket, Pantry				$ 22.09
10	12656202		Housing, Control   (Replaces: 67005625)				$ 148.84
11	W10187845		Shelf, Glide (2)		Appelez-nous	-
12	WP67003793		Slide, Temperature   (Replaces: 67003793)			Immediately	$ 78.49
13	67006356		Ladder, Center Elevator		Appelez-nous	-
14	WPW10235370		Glide, Drawer(2)   (Replaces: 67007026)			Immediately	$ 199.80
15	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
16	W10874836		Endcap, Pantry (right)   (Replaces: 12656014)			Immediately	$ 38.43
16	W10874836		Endcap, Pantry (left)   (Replaces: 67005863)			Immediately	$ 38.43
17	WP67004515		Pan, Crisper (2)   (Replaces: 67004515)			Immediately	$ 176.72
18	WP12642303WD		Brace, Crisper Cover   (Replaces: 67002748)				$ 112.26
19	WPW10231486		Trim, Crisper   (Replaces: 12530643)				$ 99.13
20	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
21	WP67006704		Glass, Crisper Cover   (Replaces: 67006704)				$ 212.77
22	67006358		Ladder, Center		Appelez-nous	-
23	67006354		Ladder, Side		Appelez-nous	-
24	67006425		Screw   (Replaces: 67006400)			Immediately	$ 7.30
25	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.79
26	WP67006415		Screw   (Replaces: 67006415)				$ 8.38
27	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 8.20
28	WP67003795		Rod, Temperature Control   (Replaces: 67003795)				$ 8.45
29	WP67003531		Drawer, Pantry   (Replaces: 67003531)				$ 162.82
30	W11498983		Knob, Temperature Control   (Replaces: 67003791)				$ 30.64
31	W10827015		Door, Pantry Drawer   (Replaces: 67005899)			Immediately	$ 175.81
32	WPW10326469		Rail, Center Crisper Frame   (Replaces: 67004514)			Immediately	$ 33.37
33	WP12603701		Supports, Crisper Frame   (Replaces: 12603701)				$ 10.83
34	WP67002759		Divider, Pantry Drawer   (Replaces: 67002759)			Immediately	$ 61.25
35	67006536		Adapter, Center Ladder		Appelez-nous	-
36	WP98165		Screw   (Replaces: 67006287)				$ 8.57
37	WP489474		Screw (2)   (Replaces: W10164192)			Immediately	$ 8.55
38	WP67006415		Screw, Adapter   (Replaces: 67006415)				$ 8.38
39	67005912		Front, Crisper Pan (2)				$ 70.62
40	67005999		Rack, Bottle		Appelez-nous	-
41	67001656		Trivet, Wine				$ 72.49
