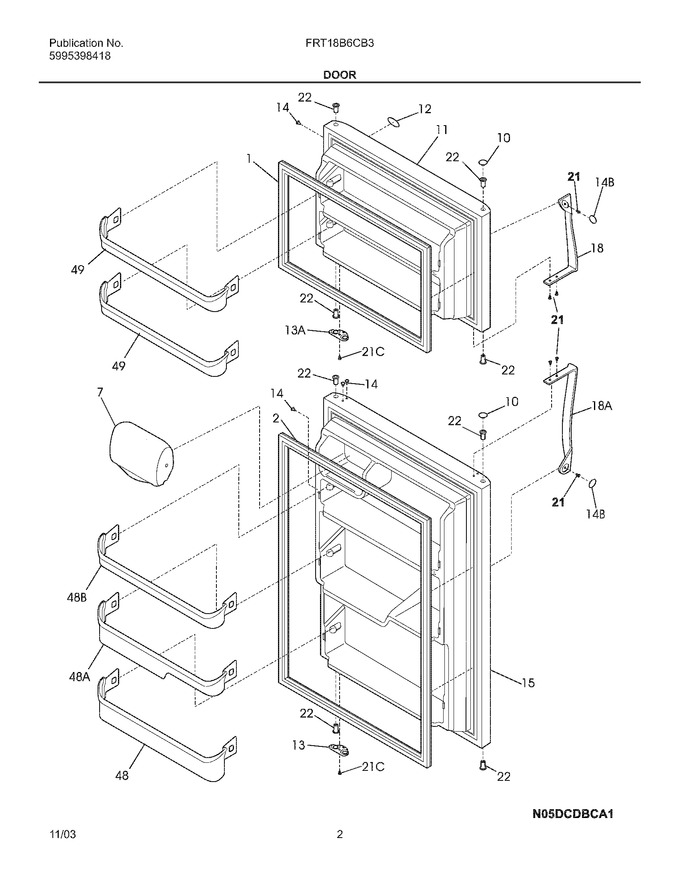

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 240337701 | Door-dairy,w/o Graphics ,white |
|
Immediately | $ 37.80 | ||||
| 10 | 240381303 | Plug-button,black ,hinge Brg Hole |
|
$ 77.52 | |||||
| 11 | 240476203 | Panel-frzr Door,black ,complete Assy |
|
- | |||||
| 12 | 241808601 | Label-nameplate,black (Replaces: 240415204) |
|
$ 14.10 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 14 | 240494003 | Plug-button,black |
|
$ 20.22 | |||||
| 15 | 240476303 | Panel-refr Door,black ,complete Assy |
|
- | |||||
| 18 | 240339203 | Handle-door,black Refr-lh/frzr-rh |
|
$ 48.30 | |||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 (Replaces: 240383401) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 48 | 240338101 | Bin-door,pseudo ,bottom |
|
Immediately | $ 58.19 | ||||
| 49 | 240495804 | Bin-door,pseudo ,frzr |
|
Immediately | $ 48.10 | ||||
| 13A | 240312415 | Door Stop,black ,frzr (Replaces: 240312406) |
|
$ 23.63 | |||||
| 14B | 240383603 | Plug-button,black ,door Handle |
|
$ 44.65 | |||||
| 18A | 240339208 | Handle-door,black Refr-rh/frzr-lh |
|
- | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 15.75 | ||||
| 48A | 240337901 | Bin-door,refr |
|
Immediately | $ 57.92 | ||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 38.84 | ||||
| F1 | 241872509 | Gasket,frzr Door Seal ,black ,magnetic (Replaces: 240514609) |
|
Immediately | $ 182.39 | ||||
| F2 | 241872512 | Gasket,seal ,black ,refr Door ,magnetic (Replaces: 240514612) |
|
Immediately | $ 183.77 |
