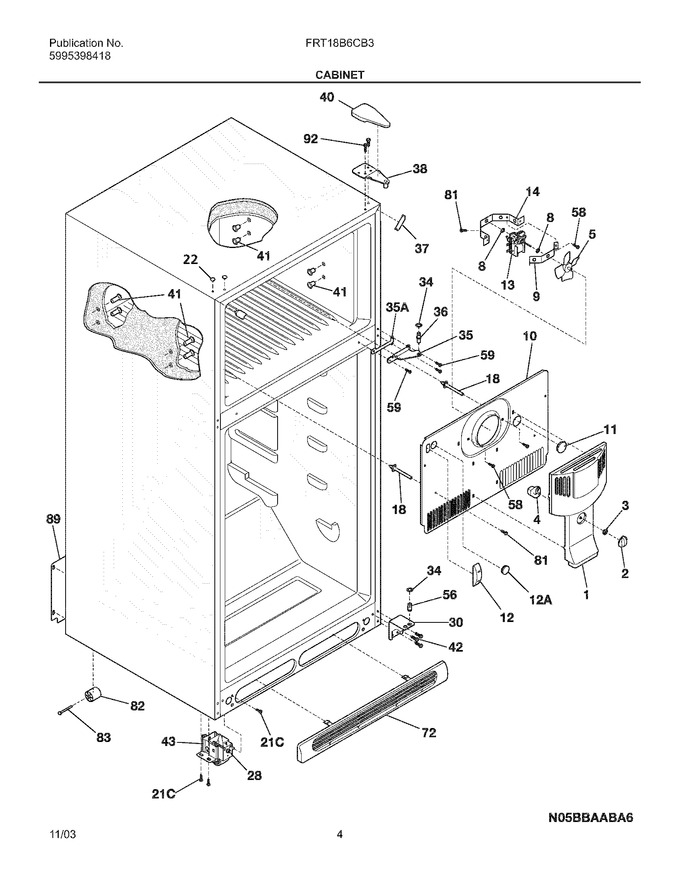

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241652301 | Cover-fan (Replaces: 240355401) |
|
$ 124.98 | |||||
| 2 | 240367001 | Knob-damper Control |
|
Immediately | $ 64.04 | ||||
| 3 | 5303001028 | Nut,push-on |
|
- | |||||
| 4 | 240367401 | Damper-fan Cover |
|
$ 41.32 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303292396 | Bracket-motor Mtg,front |
|
$ 72.30 | |||||
| 10 | 240462010 | Cover-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 50.56 | |||||
| 12 | 240366801 | Plug-ice Maker Harness,rectangular |
|
$ 48.49 | |||||
| 14 | 240438003 | Bracket-motor Mtg,rear (Replaces: 5303292397) |
|
$ 19.38 | |||||
| 18 | 240411901 | Support-evap Cover,(2) |
|
$ 12.81 | |||||
| 22 | 215774918 | Plug-button, Black, Upr Hinge Holes |
|
$ 10.95 | |||||
| 28 | 5304499445 | Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special (Replaces: 240335501) |
|
Immediately | $ 34.81 | ||||
| 30 | 240314011 | Bracket-lower Hinge,black (Replaces: 240314003) |
|
Immediately | $ 85.84 | ||||
| 34 | 240311303 | Washer,hinge ,nylon ,(2) |
|
Immediately | $ 11.80 | ||||
| 35 | 240313803 | Bracket-ctr Hinge,black |
|
$ 178.76 | |||||
| 36 | 241708002 | Pin-center Hinge (Replaces: 240516401) |
|
$ 23.63 | |||||
| 37 | 240337603 | Trim-cabinet Corner,black ,(2) |
|
$ 6.51 | |||||
| 38 | 240313703 | Bracket-upper Hinge (Replaces: 240313701) |
|
Immediately | $ 35.86 | ||||
| 40 | 240354404 | Cover-upper Hinge,black |
|
$ 68.40 | |||||
| 41 | 5304509705 | Grommet,shelf Mtg ,0.69`` ,rh (Replaces: 5303001609) |
|
$ 11.12 | |||||
| 42 | 240578902 | Screw-hinge Mtg,hex Head ,1/4-20 X 5/8 (Replaces: 240578901) |
|
Immediately | $ 15.75 | ||||
| 43 | 5304499445 | Roller Assy, Front - If Fixed Rollers W/ Leveling Screws Order 241559601(rh) And 241559602(lh). (Replaces: 240335003) |
|
Immediately | $ 34.81 | ||||
| 56 | 240516502 | Pin-lower Hinge (Replaces: 240516501) |
|
$ 80.89 | |||||
| 58 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 16.01 | |||||
| 59 | 240442707 | Screw-no.10-32 X 3/4,black (Replaces: 240442703) |
|
Immediately | $ 3.15 | ||||
| 72 | 241839407 | Grille/kickplate,black (Replaces: 240368207) |
|
Immediately | $ 65.36 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 57.30 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin (Replaces: 5303316859) |
|
Immediately | $ 39.27 | ||||
| 89 | 241733911 | Cover-access,with Label (Replaces: 240326115) |
|
$ 56.12 | |||||
| 92 | 241710601 | Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg (Replaces: 216850900) |
|
$ 14.96 | |||||
| 12A | 240374401 | Plug-wtr Inlet Tube,round ,1`` |
|
$ 12.15 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 15.75 | ||||
| 35A | 240336802 | Spacer-hinge,center |
|
Immediately | $ 20.48 | ||||
| F13 | 5303918549 | Motor-evap Fan (Replaces: 240369701) |
|
Immediately | $ 73.40 | ||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 54.48 | ||||
| NI | 240568605 | Seal-coil Cover |
|
- | |||||
| NI | 240524701 | Wiring Harness,freezer Section |
|
$ 73.08 | |||||
| NI | 218843800 | Screw,hex Wshr Hd ,8-15a X 0.500 |
|
- | |||||
| NI | 241500303 | Screw,hex Washer Head ,8-18ab X 0.500 (Replaces: 241500301) |
|
Immediately | $ 5.06 | ||||
| NI | 218931001 | Clamp-motor Wiring,nylon ,w/adhesive Tape |
|
- | |||||
| NI | 240494001 | Plug,button ,cab Liner Holes ,(2) (Replaces: 240479601) |
|
Immediately | $ 20.22 | ||||
| NI | 5304500407 | Grommet,shelf Mtg ,1.25`` ,lh (Replaces: 5308009759) |
|
Immediately | $ 7.09 | ||||
| NI | 5303321321 | Paint,touch-up ,black (Replaces: 5303305345) |
|
Immediately | $ 24.41 |
