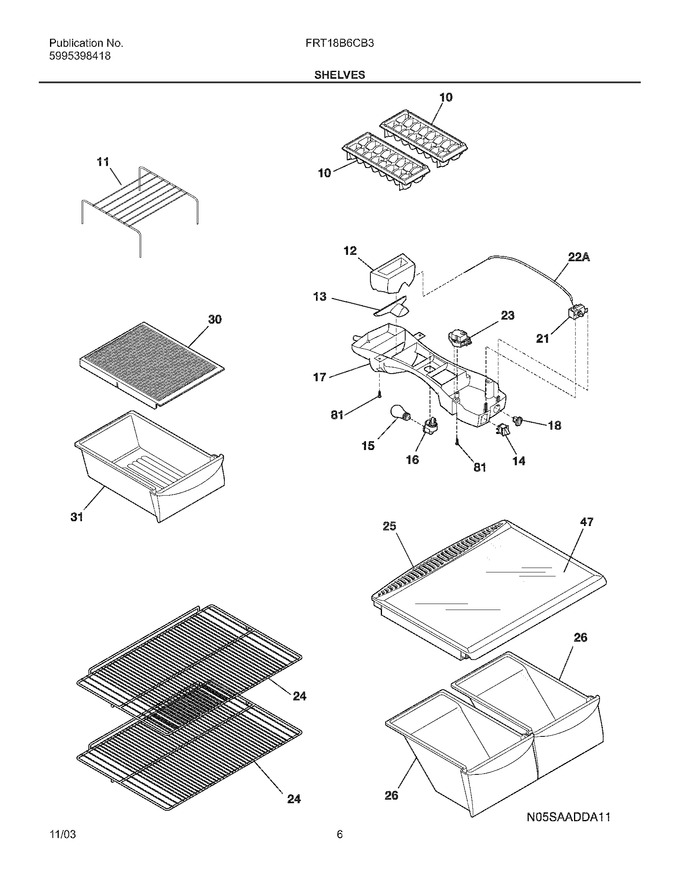

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray,ice Cube ,plastic |
|
Immediately | $ 6.74 | ||||
| 11 | 5303282284 | Shelf-freezer,``table Type`` |
|
Immediately | $ 97.83 | ||||
| 12 | 240362502 | Diffuser-air,top |
|
- | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 46.46 | ||||
| 14 | 240505801 | Switch-light/lamp |
|
$ 74.03 | |||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature (Replaces: 240436702) |
|
Immediately | $ 22.75 | ||||
| 16 | 241559801 | Socket-light/lamp (Replaces: 241500701) |
|
$ 80.75 | |||||
| 17 | 240352701 | Control Box |
|
- | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240360908 | Shelf,sliding ,wire (Replaces: 240360905) |
|
$ 105.53 | |||||
| 25 | 242201802 | Cover-crisper Pan,w/ Beam ,less Insert (Replaces: 240364701) |
|
Immediately | $ 136.78 | ||||
| 26 | 240337101 | Pan-crisper,white ,(2) ,no Graphics |
|
$ 109.78 | |||||
| 30 | 240361801 | Cover,meat Pan Hanger ,drop Through |
|
- | |||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,white (Replaces: 240530801) |
|
Immediately | $ 150.86 | ||||
| 47 | 240350608 | Insert-pan Cover,23.82`` X 15.50`` ,glass |
|
Immediately | $ 50.55 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 15.75 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 67.73 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 80.34 | ||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 31.33 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 18.90 | |||||
| NI | 240388701 | Wiring Harness,control Box |
|
Immediately | $ 88.99 | ||||
| NI | 240572124 | Label-energy |
|
- |
