SELECT A DIAGRAM

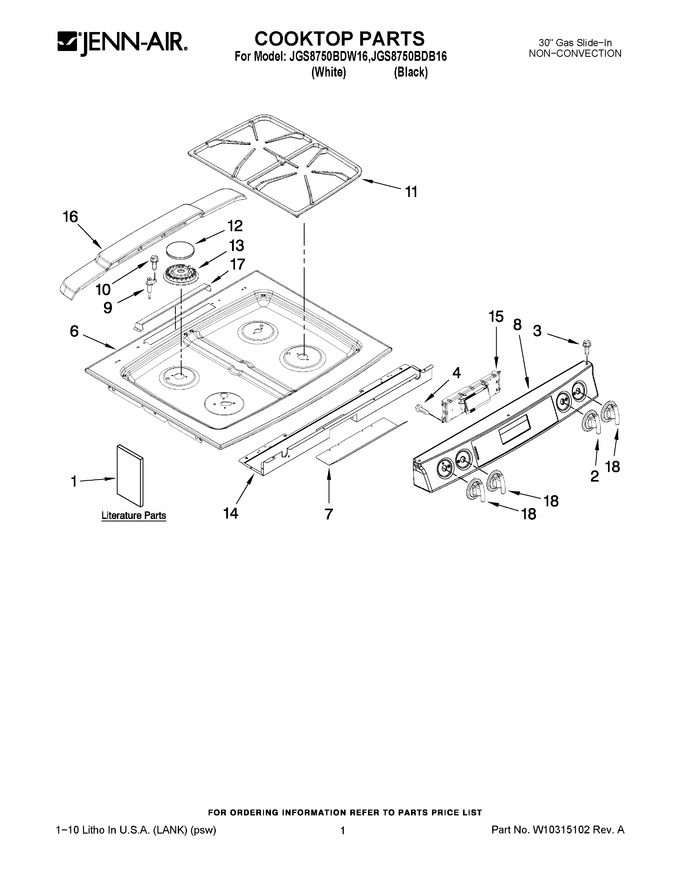

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
1	8113P759-60		Owners Manual		Appelez-nous	-
1	9762761		Brochure Tips (safe Cooking) (english)		Appelez-nous	-
1	8119P165-60		Diagram, Wiring		Appelez-nous	-
1	8101P697-60		Installation, Instructions		Appelez-nous	-
2	WP74011664		Knob, Simmer   (Replaces: 7733P480-60)				$ 52.00
3	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
4	WP59002061		Screw   (Replaces: 7101P077-60)				$ 8.18
6	W10202581		Cooktop (black)		Appelez-nous	-
6	W10204422		Cooktop (white)		Appelez-nous	-
7	7003P154-60		Insulator, Control Shield		Appelez-nous	-
8	W10206076		Panel, Control (black)				$ 279.36
8	W10206075		Panel, Control (white)				$ 305.21
9	WP74009336		Ignitor   (Replaces: 7432P121-60)			Immediately	$ 27.00
10	WP8273062		Screw, Ignitor   (Replaces: 7101P606-60)			Immediately	$ 7.91
11	7518P358-60		Grate, Burner (2)		Appelez-nous	-
12	7504P165-60		Cap, Burner (12.5k (2))		Appelez-nous	-
12	7504P204-60		Cap, Burner (15k)		Appelez-nous	-
12	WP8284669		Cap, Burner (5k)   (Replaces: 7504P202-60)			Immediately	$ 75.59
13	74007734		Burner, Assembly (15k, Lr)   (Replaces: 7505P304-60)				$ 125.76
13	74007736		Burner, Assembly (15k, Rf)   (Replaces: 7505P306-60)			Immediately	$ 117.07
13	74007735		Burner, Assembly (12.5k, Lf/rr)   (Replaces: 7505P305-60)			Immediately	$ 114.18
14	3807F731-51		Support, Cntl Pnl				$ 16.33
15	8507P227-60		Control, (erc)				$ 339.83
16	7724P200-60		Cover, Vent				$ 88.44
17	3601F221-45		Baffle, Vent Cover				$ 28.30
18	WP74011666		Knob, Gas (3)   (Replaces: 7733P482-60)			Immediately	$ 30.63

    View Diagram in Separate Window       Print Part List
