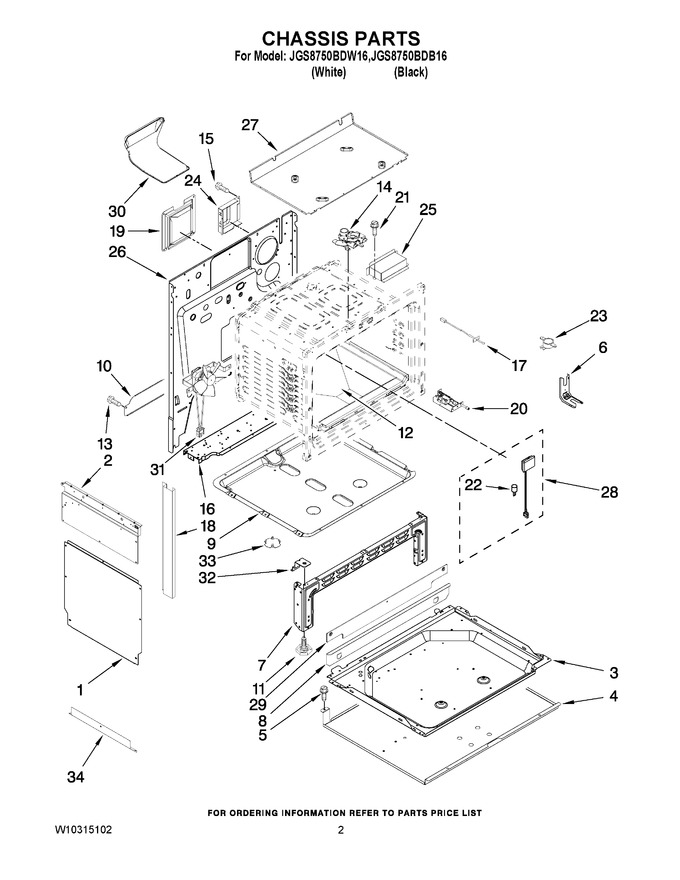

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3604F416-51		Shield, Lower Side				$ 59.21
2	2618F206-51		Panel, Shield (right)				$ 135.68
2	2618F201-51		Panel, Shield (left)				$ 32.51
3	3804F245-51		Retainer, Bottom				$ 97.02
4	3604F326-45		Shield, Drawer		Appelez-nous	-
5	W11347848		Screw   (Replaces: 7101P376-60)				$ 13.55
6	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.21
7	W10271711		Oven, Front Lower				$ 144.40
8	3601F251-45		Baffle, Oven Front		Appelez-nous	-
9	3401F044-45		Pan, Burner		Appelez-nous	-
10	3826F066-51		Extention, Back				$ 7.82
11	WP74010805		Foot, Leveler (4)   (Replaces: 7101P660-60)				$ 7.19
12	WP2205F054-19		Bottom, Oven   (Replaces: 2205F054-19)				$ 737.21
13	WP4159193		Screw   (Replaces: 7101P017-60)				$ 4.77
14	74010819		Latch Assembly   (Replaces: 8002P089-60)				$ 360.32
15	74003975		Screw, Latch Lever   (Replaces: 7101P375-60)				$ 13.36
16	3807F640-51		Support, Valve/reg				$ 31.03
17	12001655		Probe, Short   (Replaces: 7430P041-60)			Immediately	$ 45.57
18	3608F138-70		Trim, Side (black)				$ 66.28
18	3608F138-71		Trim, Side (white)				$ 34.76
19	3804F245-51		Retainer, Conv Insulation				$ 97.02
20	WP7450P108-60		Light Switch Assy   (Replaces: 7450P109-60)			Immediately	$ 153.60
21	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
22	WP74009925		Bulb, Oven   (Replaces: 899138-001)			Immediately	$ 22.63
23	7450P030-60		Switch, Limit			Immediately	$ 96.95
24	4005F810-51		Cover, Access				$ 248.98
25	4005F750-51		Cover, Door Lock		Appelez-nous	-
26	3804F313-51		Retainer, Rear		Appelez-nous	-
27	4011F475-51		Bottom,burner Box		Appelez-nous	-
28	7407P180-60		Light Assembly		Appelez-nous	-
29	7713P054-60		Trim, Front		Appelez-nous	-
30	8026P095-60		Vent, Gas				$ 60.62
31	WPW10586440		Fan, Cooling   (Replaces: 7427P094-60)				$ 318.60
32	3807F727-45		Support, Oven (bottom)				$ 18.96
33	7718P034-60		Plug- Hole				$ 14.25
34	3826F034-51		Ext., Heat Shield		Appelez-nous	-
NI	7002P078-60		Insulation, Drawer & Shield		Appelez-nous	-
NI	7002P443-60		Insulation, Oven Bottom				$ 41.31
NI	7002P471-60		Insulation, Wrap		Appelez-nous	-
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P474-60		Insulation, Front Frame		Appelez-nous	-
NI	WP7002P451-60		Insulation, Flue   (Replaces: 7002P451-60)				$ 75.87
