01 - Cooktop Parts
02 - Chassis Parts
03 - Manifold Parts
04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

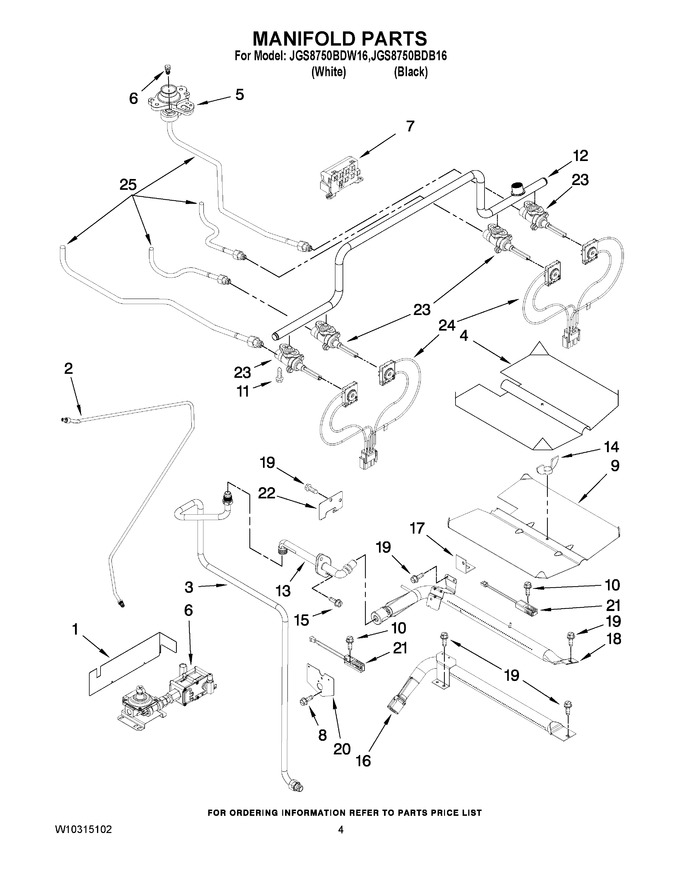

| 1 | W10271712 | Cover, Bnr Valve |
|
- | |||||
| 2 | 7506P489-60 | Tubing, Gas Supply |
|
$ 35.75 | |||||
| 3 | 7506P301-60 | Tubing, Broiler |
|
- | |||||
| 4 | 3601F307-45 | Baffle, Broil |
|
$ 200.26 | |||||
| 5 | 74009553 | Orifice, Holder (5k,lr) (Replaces: 7527P042-60) |
|
$ 83.63 | |||||
| 5 | WP7527P002-60 | Orifice, Holder (9.2k, Rr) (Replaces: 7527P002-60) |
|
$ 81.00 | |||||
| 5 | WP7527P004-60 | Orifice, Holder (15k, Rf) (Replaces: 7527P004-60) |
|
$ 81.00 | |||||
| 6 | W10130932 | Vavle, Safety (Replaces: 7501P231-60) |
|
Immediately | $ 371.37 | ||||
| 7 | WPW10475147 | Module, Spark (Replaces: 7431P038-60) |
|
Immediately | $ 238.24 | ||||
| 8 | WPY706189 | Screw (Replaces: 7101P346-60) |
|
Immediately | $ 7.19 | ||||
| 9 | 3601F239-45 | Baffle, Bake |
|
- | |||||
| 10 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.77 | |||||
| 11 | W11233072 | Screw, Support (4) (Replaces: 7101P338-60) |
|
Immediately | $ 14.02 | ||||
| 12 | 7513P473-60 | Pipe, Manifold |
|
$ 343.13 | |||||
| 13 | WP74010901 | Fitting, Broil (Replaces: 7507P407-60) |
|
$ 83.65 | |||||
| 14 | 7103P030-60 | Nut, Wing |
|
$ 7.08 | |||||
| 15 | W11846982 | Screw (Replaces: 7101P676-60) |
|
- | |||||
| 16 | 7505P254-60 | Burner, Bake |
|
- | |||||
| 17 | 3807F480-45 | Support, Bake Bnr |
|
$ 17.01 | |||||
| 18 | 7505P293-60 | Burner, Broil |
|
$ 89.91 | |||||
| 19 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.95 | |||||
| 20 | 3605F269-45 | Plate, Broil Fitting |
|
- | |||||
| 21 | 74007498 | Ignitor, Electric Ignition (Replaces: 7432P106-60) |
|
Immediately | $ 87.11 | ||||
| 22 | 4005F421-45 | Cover,ignitor Wire |
|
- | |||||
| 23 | 7502P548-60 | Valve, Top Burner (15k, Rf) |
|
- | |||||
| 23 | 7502P470-60 | Valve, Top Burner (5k, Lr) |
|
- | |||||
| 23 | 7502P471-60 | Valve, Top Burner (9.2k, Rr) |
|
- | |||||
| 24 | WP74011647 | Switch, Reignition (lf/lr) (Replaces: 7450P003-60) |
|
$ 221.21 | |||||
| 24 | WP74011648 | Switch, Reignition (rf/rr) (Replaces: 7450P004-60) |
|
Immediately | $ 221.22 | ||||
| 25 | 7506P445-60 | Tube, Burner (rf) |
|
$ 8.76 | |||||
| 25 | 7506P487-60 | Tube, Burner (lf/lr) |
|
- | |||||
| 25 | 7506P486-60 | Tube, Burner (rr) |
|
- | |||||
| NI | 7507P405-60 | Spuds, Lp Gas |
|
- |
