Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10253459 Installation Instructions Appelez-nous -
1 W10235526 Owners Manual Brochure, Tips Appelez-nous -
1 9762761 Safe Cooking (english) Appelez-nous -
1 W10065852 Safe Cooking (french) Appelez-nous -
3 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

4 WP59002061 Screw   (Replaces: 7101P077-60) Special Order $ 8.18

6 W10204432 Cooktop (white) Appelez-nous -
6 2001D312-50 Cooktop (stainless) Appelez-nous -
6 W10202584 Cooktop (black) Appelez-nous -
7 7003P154-60 Shield, Control Appelez-nous -
8 W10235329 Panel, Control (stainless) Appelez-nous -
8 W10235331 Panel, Control (black) Special Order $ 338.63

8 W10235330 Panel, Control (white) Special Order $ 324.47

10 W10255424 Knob, Valve (4) (black) Special Order $ 34.81

10 W10255423 Knob, Valve (4) (white) Appelez-nous -
10 W10255425 Knob, Valve (4) (stainless) Special Order $ 62.67

11 7518P358-60 Grate, Burner (2) Appelez-nous -
12 7504P242-60 Cap, Burner (dual Inner) Appelez-nous -
12 WP8284669 Cap, Burner (black 5k (1))   (Replaces: 7504P202-60) In-Stock Immediately $ 75.59

12 7504P165-60 Cap, Burner (black 12.5k (2)) Appelez-nous -
12 7504P204-60 Cap, Burner (black 16k (1)) Appelez-nous -
12 7504P243-60 Cap, Burner (dual Outer) Appelez-nous -
13 W10203534 Base, Burner (5k Lr (1))   (Replaces: 7540P036-60) Special Order $ 102.65

13 7505P349-60 Base, Burner (12k Rr,lf (2)) Appelez-nous -
13 8215559 Base, Burner (16k Rf (1))   (Replaces: 7540P038-60) Special Order $ 115.56

14 3807F751-51 Support, Cntl Pnl Appelez-nous -
15 WP8507P228-60 Control, (erc)   (Replaces: 8507P228-60) In-Stock Immediately $ 411.11

16 7724P200-60 Cover, Vent Special Order $ 88.44

17 3601F221-45 Baffle,vent Cover Special Order $ 28.30


    View Diagram in Separate Window     Print Icon   Print Part List

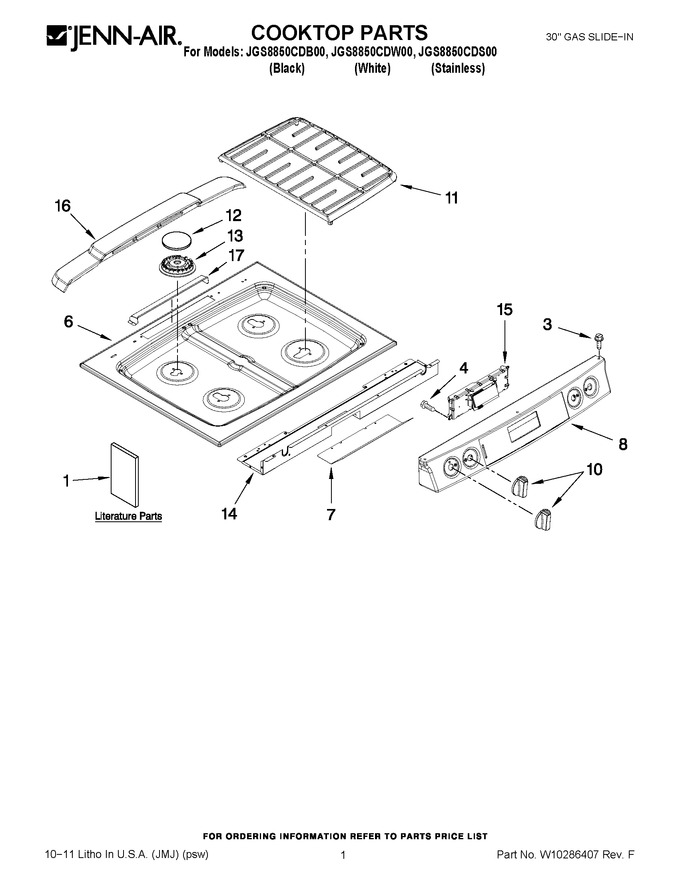

Diagram for JGS8850CDS00
